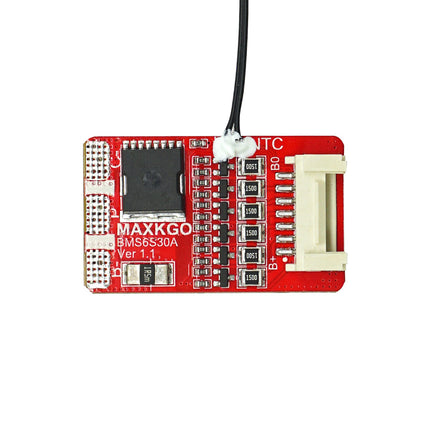

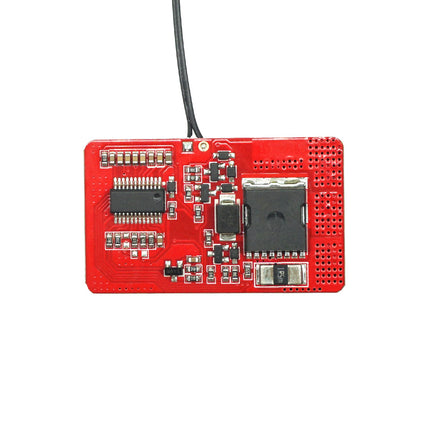

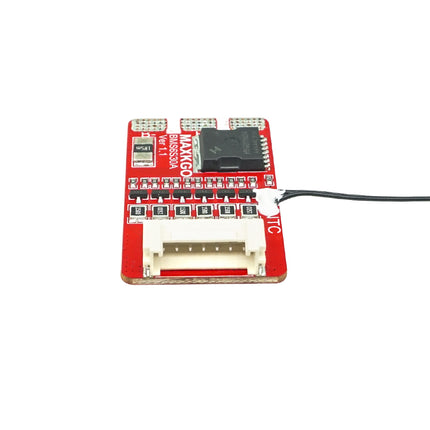

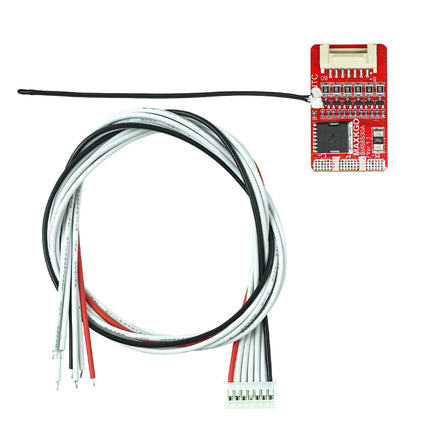

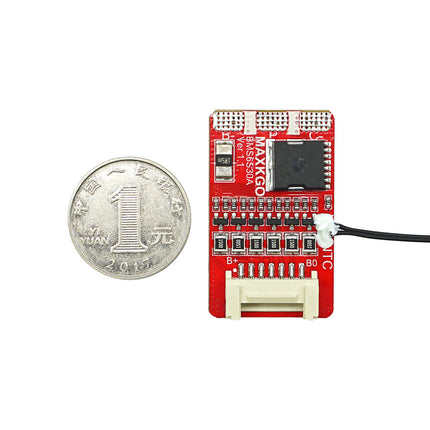

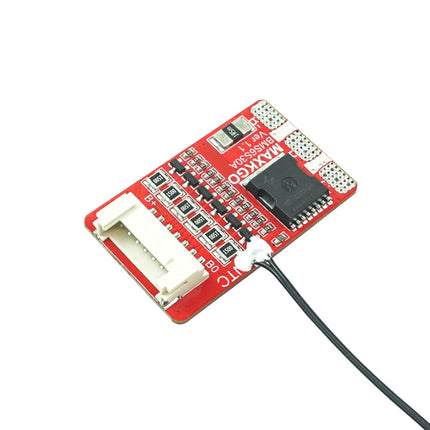

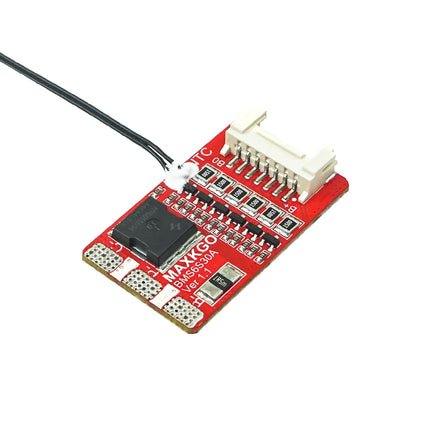

Maxkgo 6S 24V 30A BMS Battery Protection Board For LiFePO4 LiMn2O4 Li-polymer Battery

Beschreibung

Specification:

Charging Voltage: 6*4.2V
Charging Currect: 15A
Charging Overcurrent Protection Value: 26A
Balance Enable Voltage: 4.125V
Battery Balance Current: 25 ± 5mA
Overcharge Detection Voltage: 4.25 ± 0.05V
Overcharge Release Voltage: 4.15 ± 0.05V
Discharge Current: 30A
Discharge Overcurrent Protection Value: 66A
Over-discharge Detection Voltage: 2.8 ± 0.05V
Over-discharge Release Voltage: 3.0 + 0.05V
Over-discharge Detection Delay: 1S
short Circuit Detection Delay: 200-500 μS (The actual results are subject to the customer's return and inspection)
Working Temperature Range: -30°C~70°C
Storage Temperature Range: -40°C~125°C
Temperature Protection: Charging: -10°C~50°C, Discharging: -30°C~70°C (can be customized)
Sleep Current (Battery Over-discharge): 10μA

Maxkgo 6S 24V 30A BMS Battery Protection Board For LiFePO4 LiMn2O4 Li-polymer Battery

Produkt Form

Specification: Charging Voltage: 6*4.2VCharging Currect: 15ACharging Overcurrent Protection Value: 26ABalance Enable Voltage: 4.125VBattery Balance Current: 25 ± 5mAOvercharge Detection Voltage:... Lesen Sie mehr

SKU: BMS6S30A

$10.54 $7.38 Exkl. MwSt

    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Heute verschickt? Bestellung innerhalb: Oct 25, 2025 17:00:00 +0800

    Beschreibung

    Specification:

    Charging Voltage: 6*4.2V
    Charging Currect: 15A
    Charging Overcurrent Protection Value: 26A
    Balance Enable Voltage: 4.125V
    Battery Balance Current: 25 ± 5mA
    Overcharge Detection Voltage: 4.25 ± 0.05V
    Overcharge Release Voltage: 4.15 ± 0.05V
    Discharge Current: 30A
    Discharge Overcurrent Protection Value: 66A
    Over-discharge Detection Voltage: 2.8 ± 0.05V
    Over-discharge Release Voltage: 3.0 + 0.05V
    Over-discharge Detection Delay: 1S
    short Circuit Detection Delay: 200-500 μS (The actual results are subject to the customer's return and inspection)
    Working Temperature Range: -30°C~70°C
    Storage Temperature Range: -40°C~125°C
    Temperature Protection: Charging: -10°C~50°C, Discharging: -30°C~70°C (can be customized)
    Sleep Current (Battery Over-discharge): 10μA
