MAXKGO 3625 1800KV Brushless Motor 3 Phase 2～4 S 29300rpm Electric Controller For 1/10 RC Climbing Vehicle Rocky Crawler Vehicle

Beschreibung

Specifications:
Model: 3625
KV Value: 1800 KV

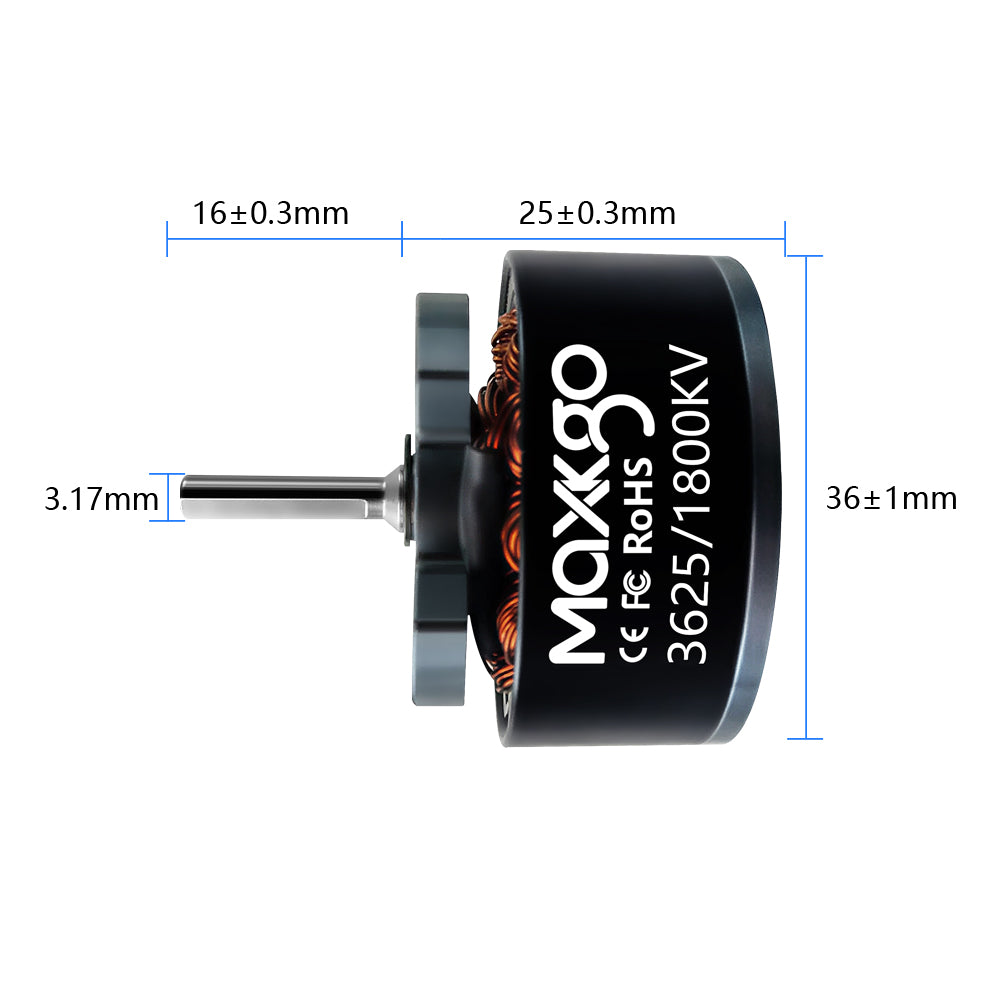

Axis Extension Size: 16±0.3mm
Outer Diameter Of Silicon Steel Sheet: 30mm
Axial Clearance: <0.1
Silicon Steel Sheet Height: 12mm
Installation Of Threaded Hole Positioning Dimensions: 25±0.1mm
Magnetic Grade: N52H
Screw Hole: 8-M3*3.5
Phases: 3 Phase
Lead Specifications: 16AWG special soft silicone wire/200mm
Slot Poles Number: 12N/14P
Motor Weight (with leads): 92g
Ctator Coil Connection Type: △
Rated Voltage : 16.8V
Insulation Resistance: ≥0.5MΩ
Interphase Resistance R: 20.3mΩ±10%
Motor steering: C.W/C.C.W
No Load Speed : 29300rpm±10%
Voltage Range: 2～4S
No Load Current: 4.5A±20%
Motor Outer Diameter D: 36±0.1mm
Max. Current: 69A
Model Body Height: 25±0.3mm
Max. Power: 1150W
Test Voltage: 16.8V
Resistance: 20.3Ω

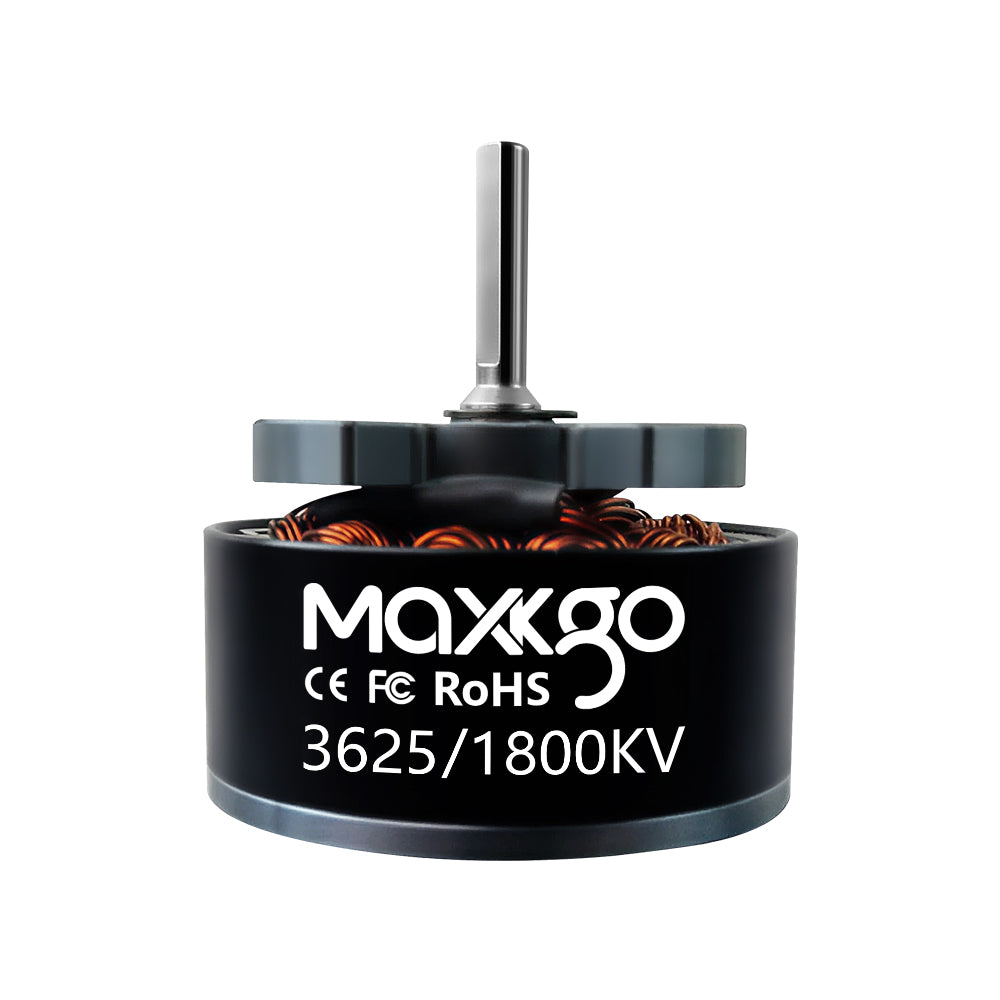

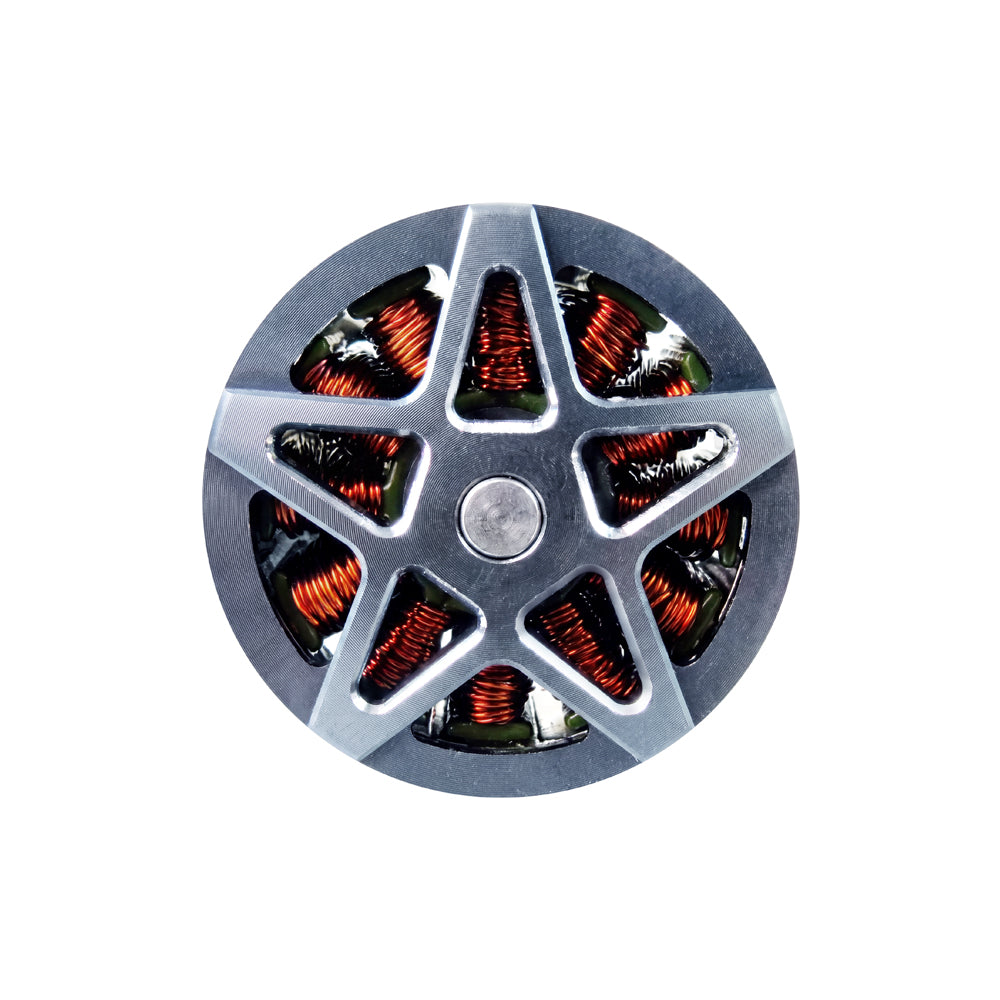

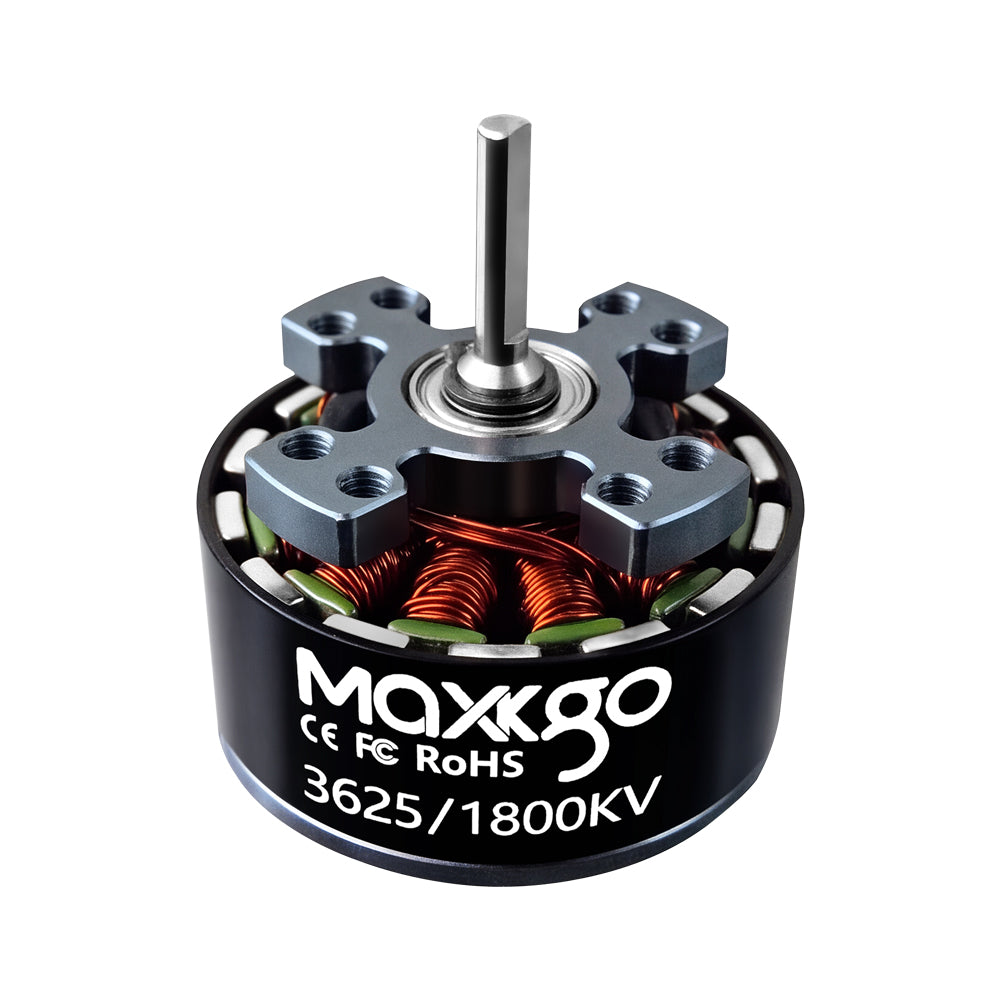

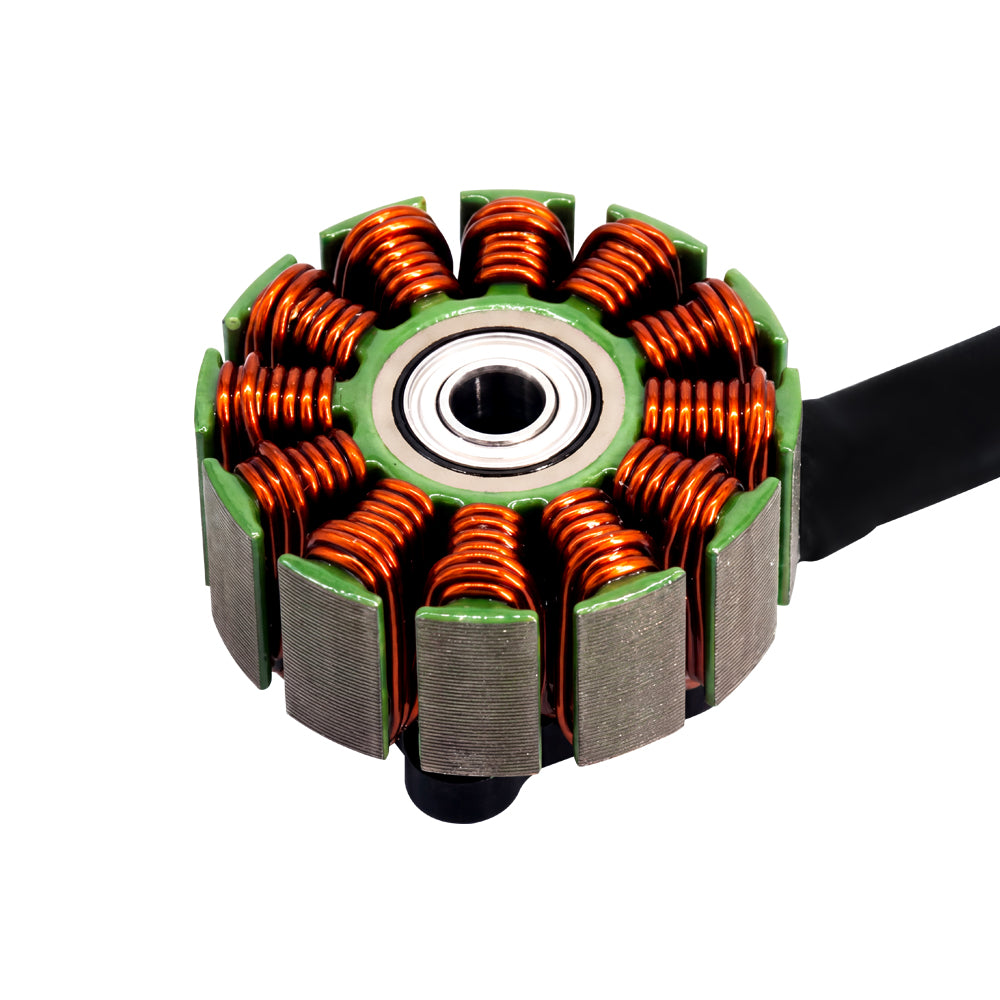

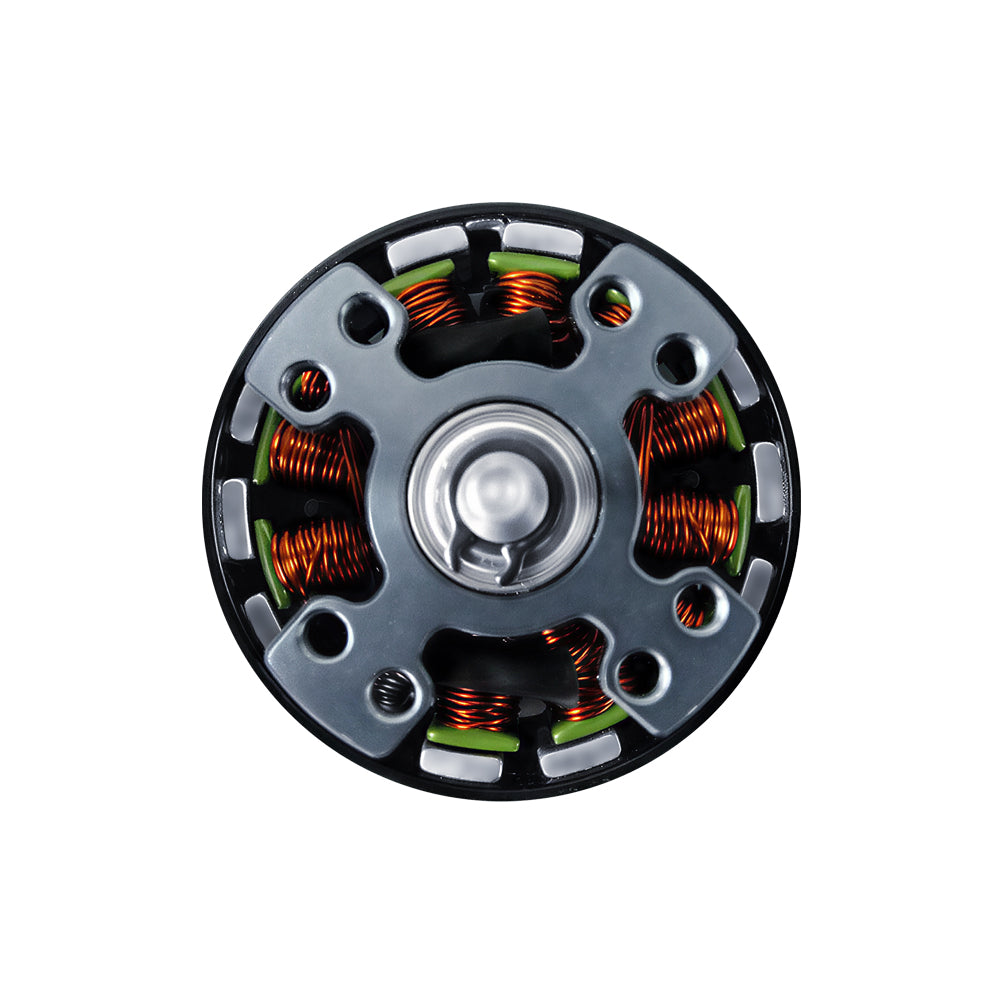

Product Photo:

MAXKGO 3625 1800KV Brushless Motor 3 Phase 2～4 S 29300rpm Electric Controller For 1/10 RC Climbing Vehicle Rocky Crawler Vehicle

Produkt Form

Specifications: Model: 3625 KV Value: 1800 KV Axis Extension Size: 16±0.3mm Outer Diameter Of Silicon Steel Sheet: 30mm Axial Clearance:... Lesen Sie mehr

SKU: 90-036025-010-011

$45.49 $34.99 Exkl. MwSt

            Beschreibung

            Specifications:
            Model: 3625
            KV Value: 1800 KV
            Axis Extension Size: 16±0.3mm
            Outer Diameter Of Silicon Steel Sheet: 30mm
            Axial Clearance: <0.1
            Silicon Steel Sheet Height: 12mm
            Installation Of Threaded Hole Positioning Dimensions: 25±0.1mm
            Magnetic Grade: N52H
            Screw Hole: 8-M3*3.5
            Phases: 3 Phase
            Lead Specifications: 16AWG special soft silicone wire/200mm
            Slot Poles Number: 12N/14P
            Motor Weight (with leads): 92g
            Ctator Coil Connection Type: △
            Rated Voltage : 16.8V
            Insulation Resistance: ≥0.5MΩ
            Interphase Resistance R: 20.3mΩ±10%
            Motor steering: C.W/C.C.W
            No Load Speed : 29300rpm±10%
            Voltage Range: 2～4S
            No Load Current: 4.5A±20%
            Motor Outer Diameter D: 36±0.1mm
            Max. Current: 69A
            Model Body Height: 25±0.3mm
            Max. Power: 1150W
            Test Voltage: 16.8V
            Resistance: 20.3Ω

            Product Photo:
