Maxkgo 2207 1950KV Drone motor for Drones

Beschreibung

Voltage range: 3~6S（12.6V~33.6V）
Rated voltage : 12.0V
Max current：35.8A
Max power ：902W
Slot pole number: 12N/14P
Axis extension size: 13.5±0.3mm
Silicon steel sheet outer diameter: 22mm
Axial clearance: /
Mounting threaded hole positioning size: 16±1mm
Magnet grade: N52H
Screw hole: 4-M3*2.5
Motor phase number: 3Phase
Lead specification: 20AWG extra soft silicone wire/160mm
Motor weight (with lead): 35.8g
Stator coil connection type: △
Insulation resistance: ≥0.5MΩ
Phase-to-phase resistance R: 73mΩ±10%
Motor direction: C.W/C.C.W
No-load speed n0: 22500rpm±10%
No-load current I0 ：1.2A±20%

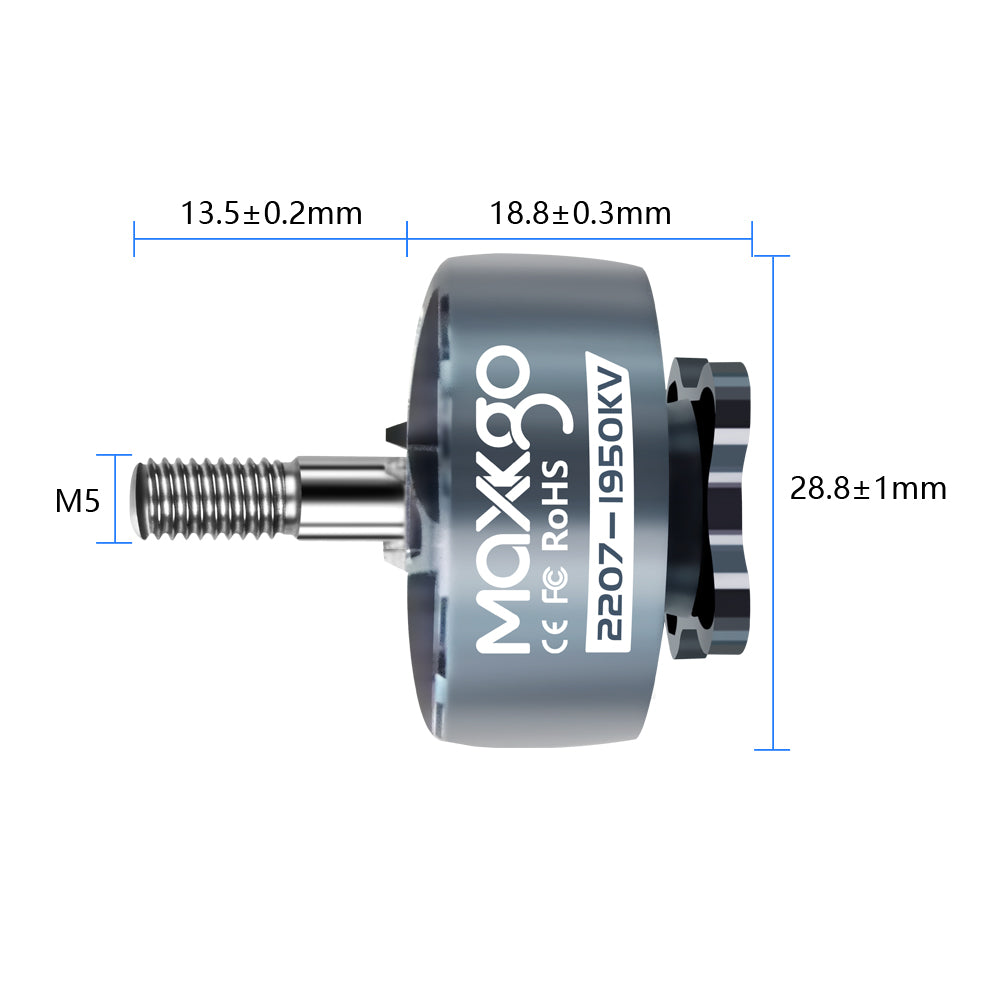

Motor outer diameter D ：28.8±0.1mm
Motor body height H ：18.8±0.3mm

Maxkgo 2207 1950KV Drone motor for Drones

Produkt Form

Voltage range: 3~6S（12.6V~33.6V）Rated voltage : 12.0VMax current：35.8AMax power ：902WSlot pole number: 12N/14PAxis extension size: 13.5±0.3mmSilicon steel sheet outer diameter: 22mmAxial... Lesen Sie mehr

SKU: 80-022007-010-011(1950)

$17.99 Exkl. MwSt

          • Heute verschickt? Bestellung innerhalb: Aug 22, 2026 17:00:00 +0800

          Beschreibung

          Voltage range: 3~6S（12.6V~33.6V）
          Rated voltage : 12.0V
          Max current：35.8A
          Max power ：902W
          Slot pole number: 12N/14P
          Axis extension size: 13.5±0.3mm
          Silicon steel sheet outer diameter: 22mm
          Axial clearance: /
          Mounting threaded hole positioning size: 16±1mm
          Magnet grade: N52H
          Screw hole: 4-M3*2.5
          Motor phase number: 3Phase
          Lead specification: 20AWG extra soft silicone wire/160mm
          Motor weight (with lead): 35.8g
          Stator coil connection type: △
          Insulation resistance: ≥0.5MΩ
          Phase-to-phase resistance R: 73mΩ±10%
          Motor direction: C.W/C.C.W
          No-load speed n0: 22500rpm±10%
          No-load current I0 ：1.2A±20%
          Motor outer diameter D ：28.8±0.1mm
          Motor body height H ：18.8±0.3mm
