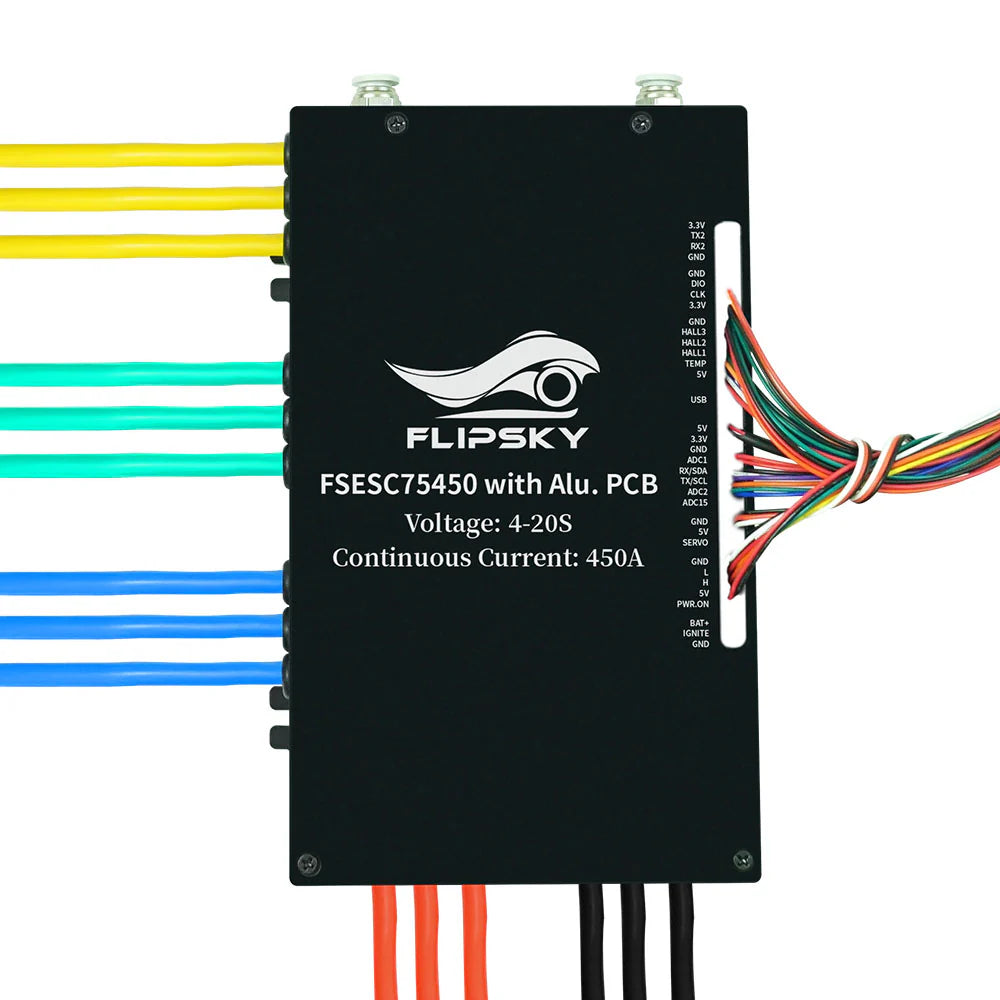

Flipsky FSESC 75450 84V High Current 450A ESC Base On Vesc With Aluminum Case Water Cooling Enclosure For E-Foil Fighting Robot Surfboard AGV Robot

Beschreibung

Specs:

  • Firmware: 5.2, supports firmware upgrade
  • Voltage: 14-84V (safe for 4-20S)
  • Continuous current: 50V/450A; 75V/350A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 1200A
  • BEC: 5V@1A
  • Support Modes: DC, BLDC, FOC (sinusoidal)
  • ERPM: 150000
  • Communication Ports: USB, CAN, UART, SPI, IIC
  • Supported Sensors: ABI, HALL, AS5047, AS5048A
  • Input Source Support: PPM, ADC, NRF, UART
  • Supported Sensorless: Yes
  • Regenerative capacity: Yes
  • Programmable via VESC_TOOL: Yes
  • Red Switch Button: Yes
  • Phase filter: Yes

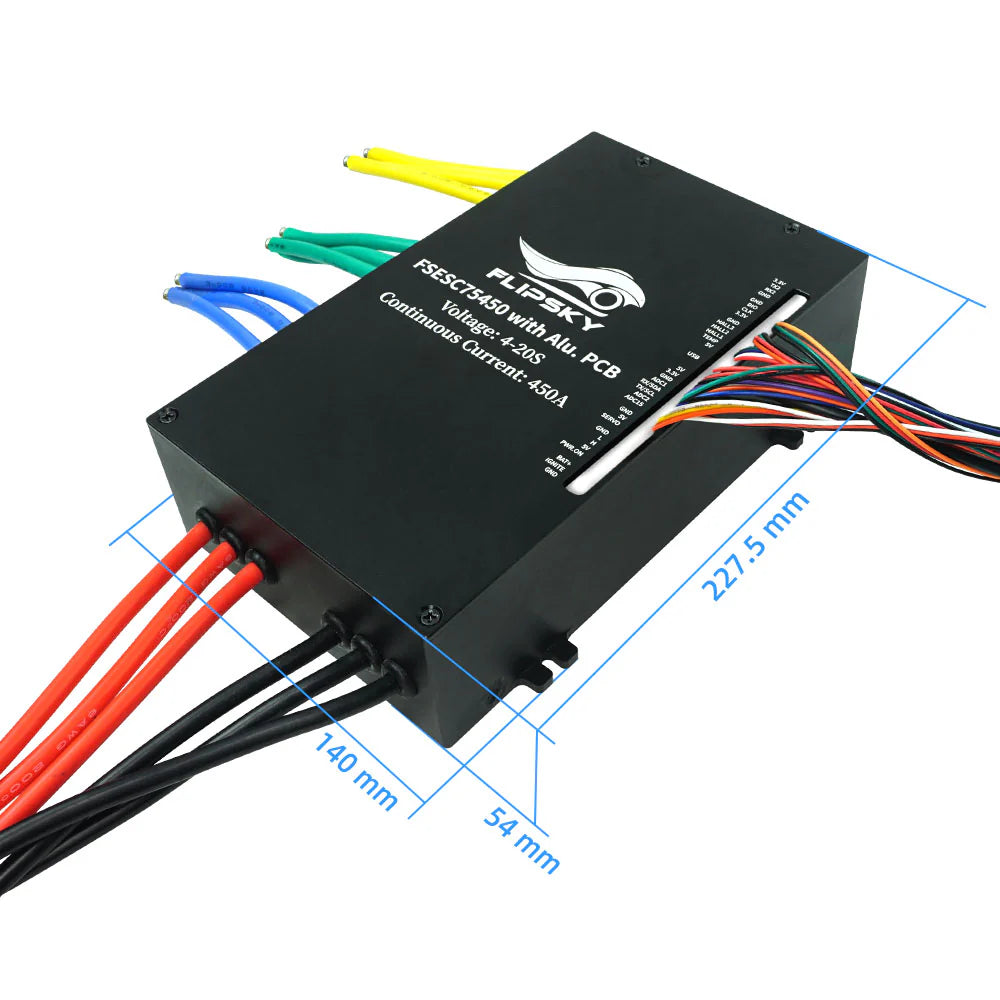

  • Size:227.5*140*54mm(Including Water Cooling Enclosure)

Features:

  • Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.
  • Support various control modes: Current / Duty cycle / Speed / PID control modes.
  • Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
  • CPU:STM32F405 with frequency 168MHz

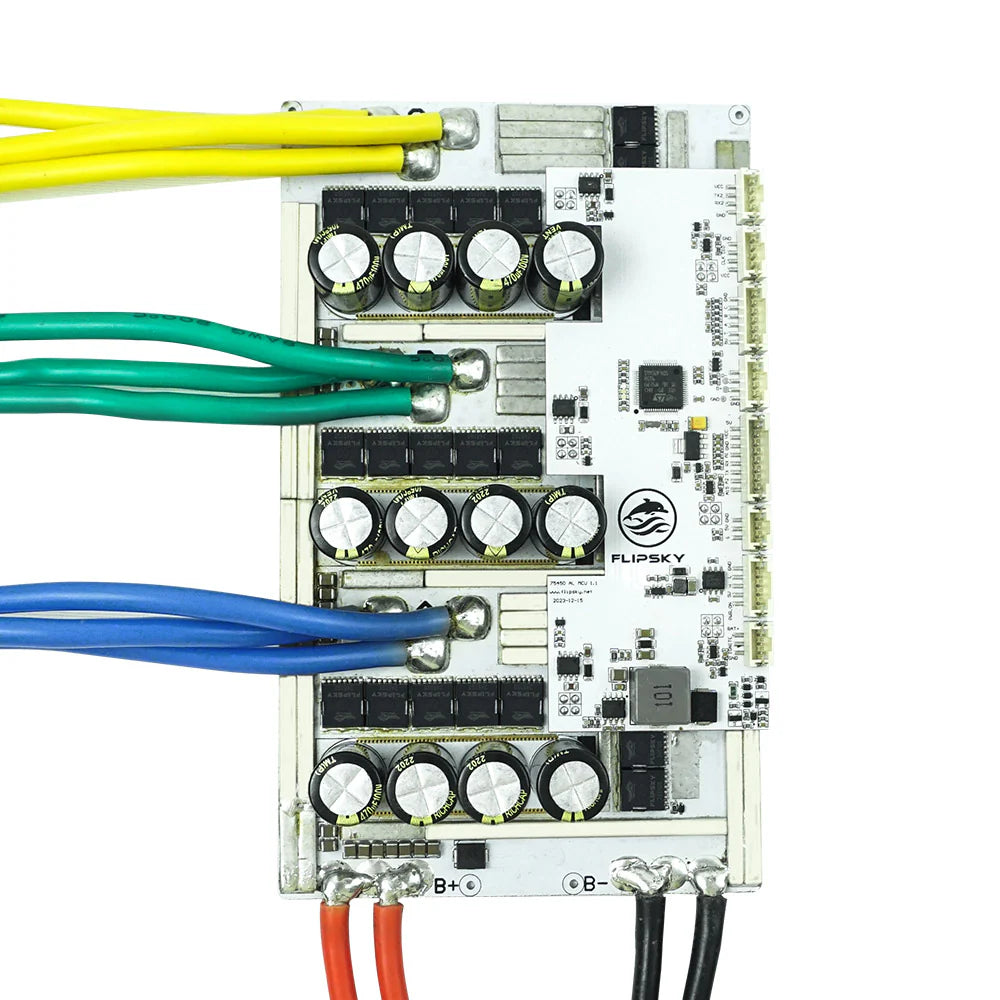

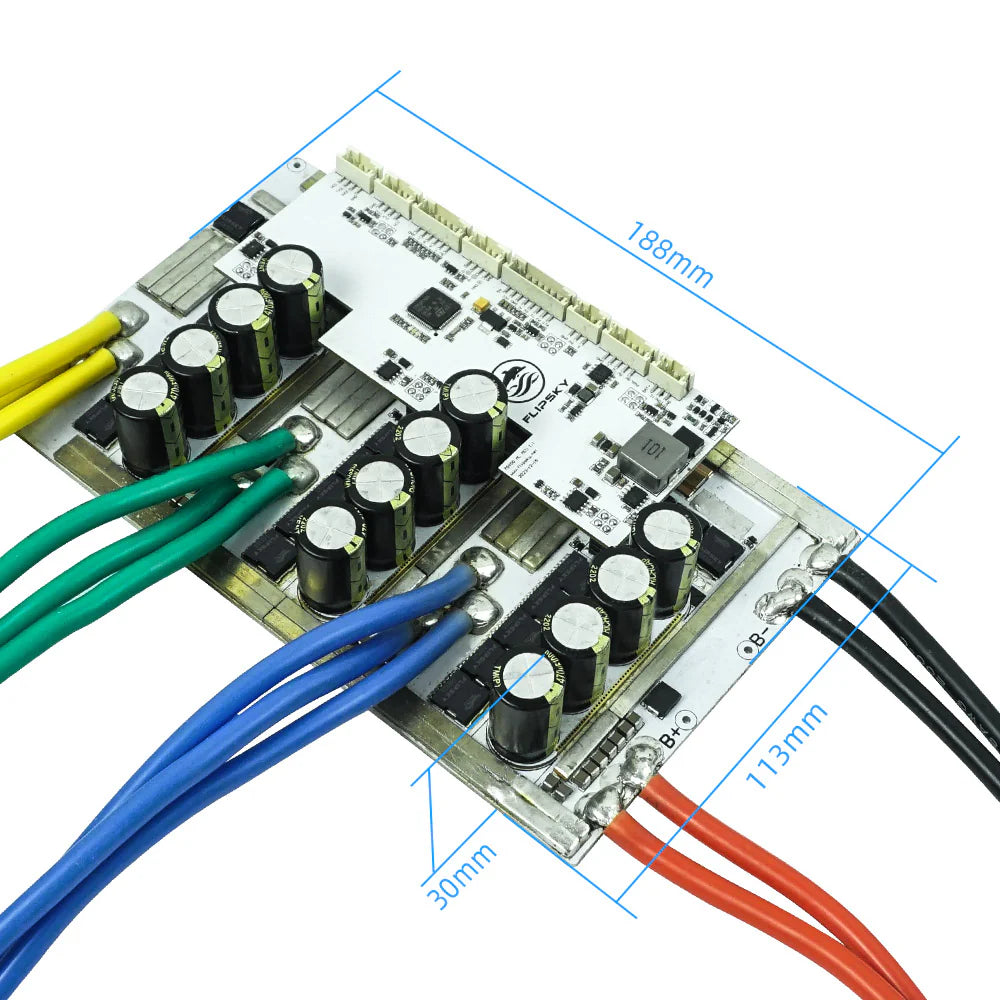

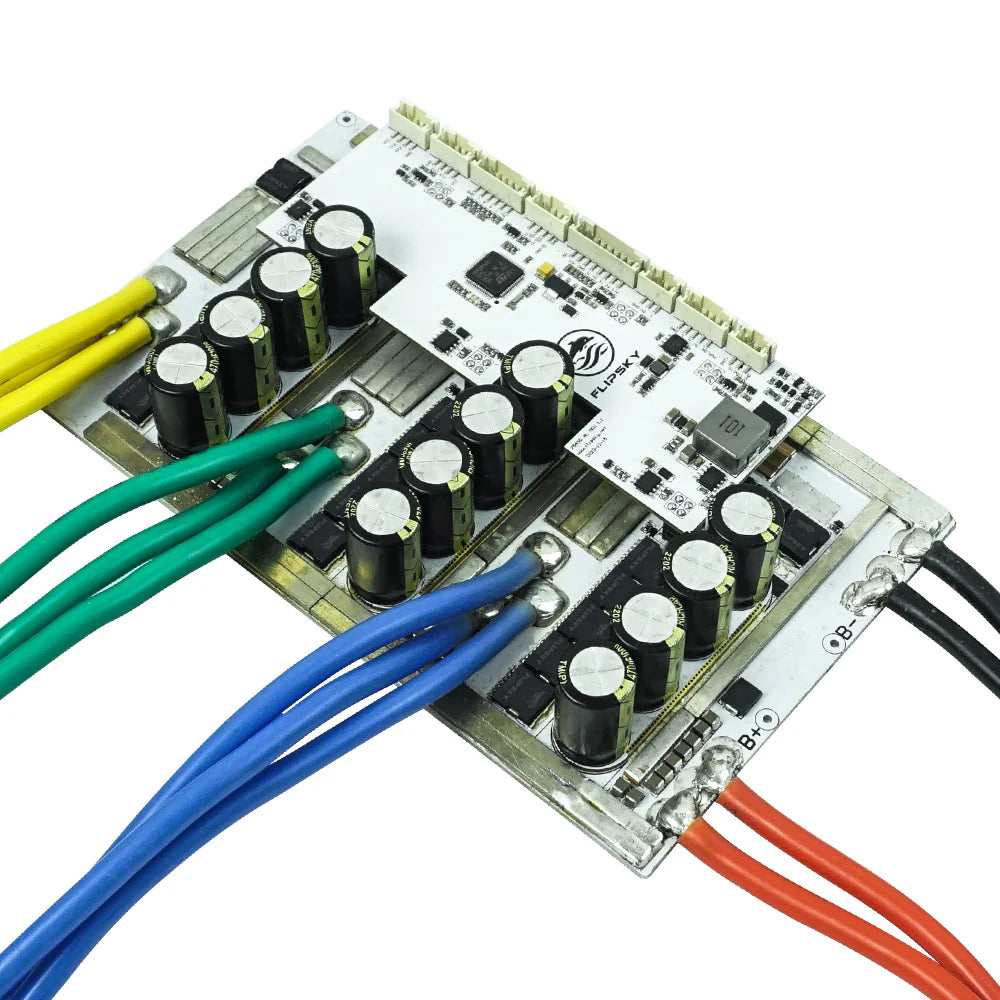

  • Aluminum PCB with good heat dissipation to expand life span.
  • Built with ignite power on/off switch button.

Wiring Diagram:

Flipsky FSESC 75450 84V High Current 450A ESC Base On Vesc With Aluminum Case Water Cooling Enclosure For E-Foil Fighting Robot Surfboard AGV Robot

Produkt Form

Specs: Firmware: 5.2, supports firmware upgrade Voltage: 14-84V (safe for 4-20S) Continuous current: 50V/450A; 75V/350A (Values depend on the mounting,... Lesen Sie mehr

$280.00 Exkl. MwSt

          • Heute verschickt? Bestellung innerhalb: Jun 03, 2026 17:00:00 +0800

          Beschreibung

          Specs:

          • Firmware: 5.2, supports firmware upgrade
          • Voltage: 14-84V (safe for 4-20S)
          • Continuous current: 50V/450A; 75V/350A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 1200A
          • BEC: 5V@1A
          • Support Modes: DC, BLDC, FOC (sinusoidal)
          • ERPM: 150000
          • Communication Ports: USB, CAN, UART, SPI, IIC
          • Supported Sensors: ABI, HALL, AS5047, AS5048A
          • Input Source Support: PPM, ADC, NRF, UART
          • Supported Sensorless: Yes
          • Regenerative capacity: Yes
          • Programmable via VESC_TOOL: Yes
          • Red Switch Button: Yes
          • Phase filter: Yes
          • Size:227.5*140*54mm(Including Water Cooling Enclosure)

          Features:

          • Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.
          • Support various control modes: Current / Duty cycle / Speed / PID control modes.
          • Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
          • CPU:STM32F405 with frequency 168MHz
          • Aluminum PCB with good heat dissipation to expand life span.
          • Built with ignite power on/off switch button.

          Wiring Diagram:
