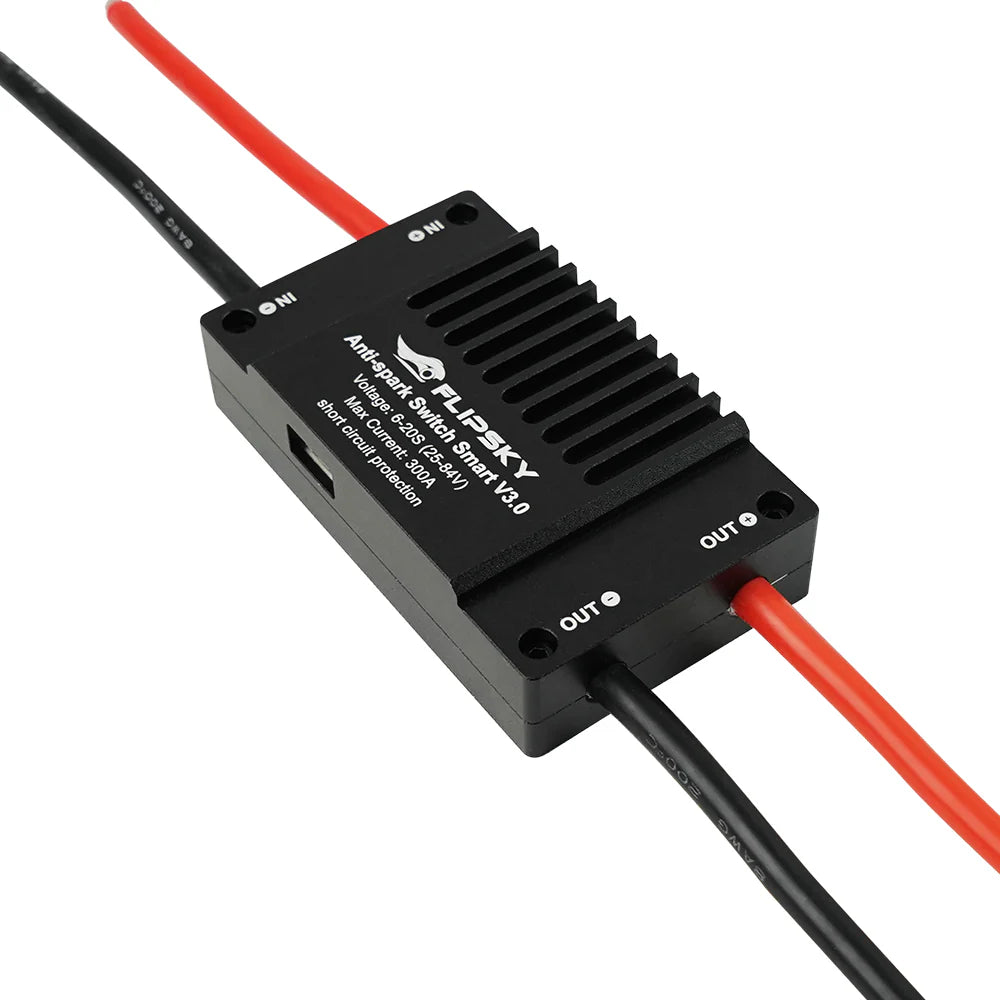

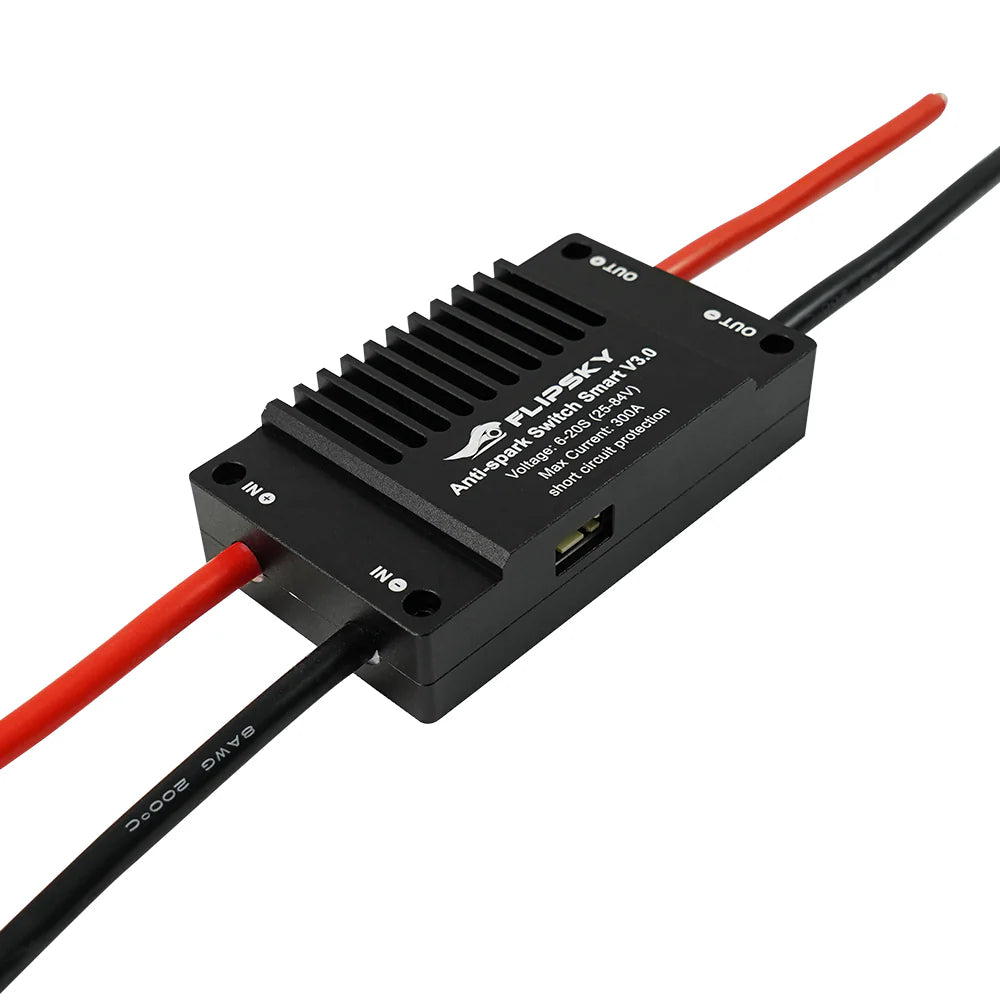

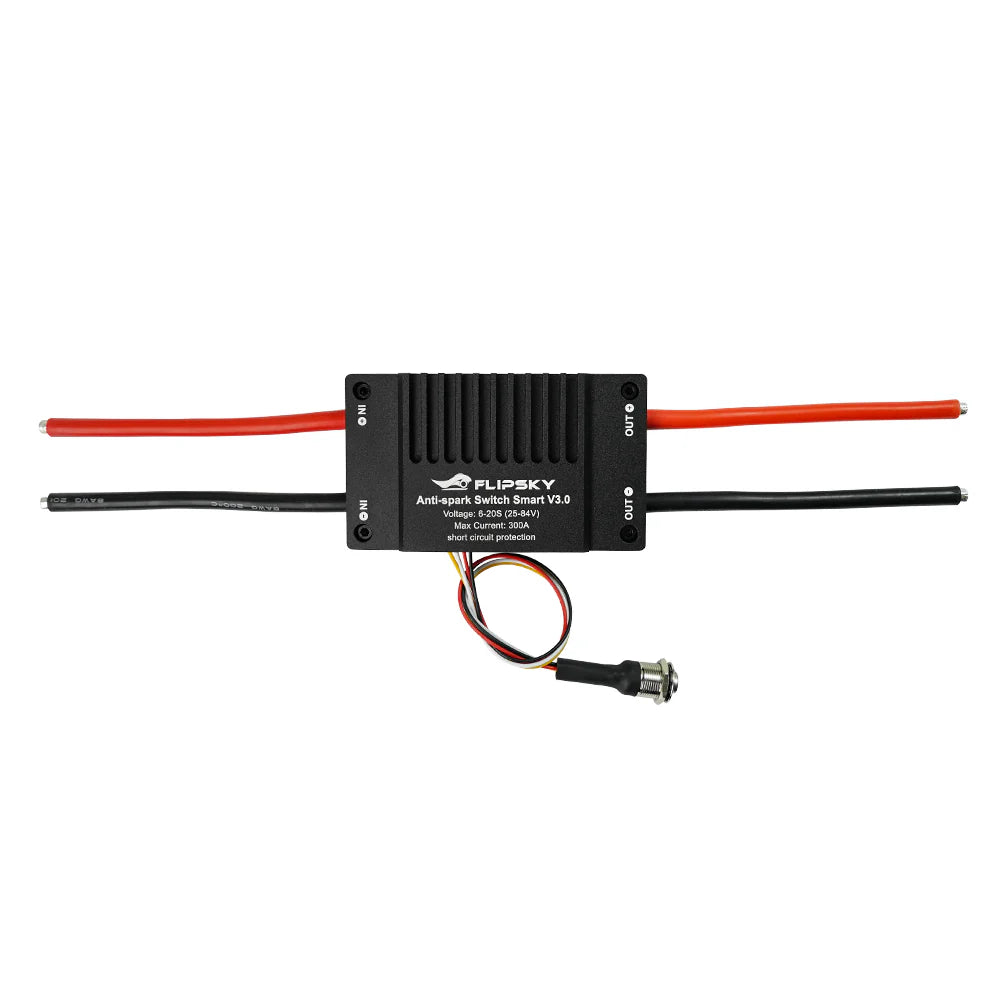

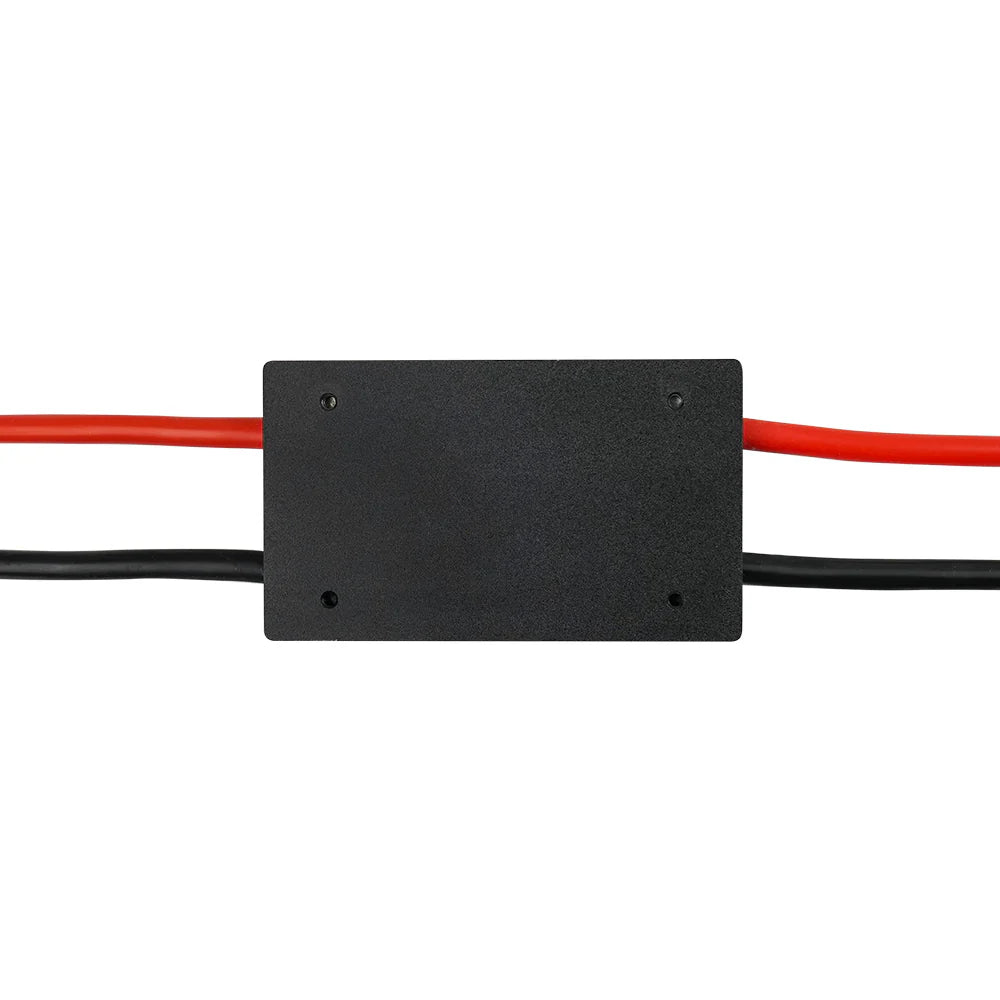

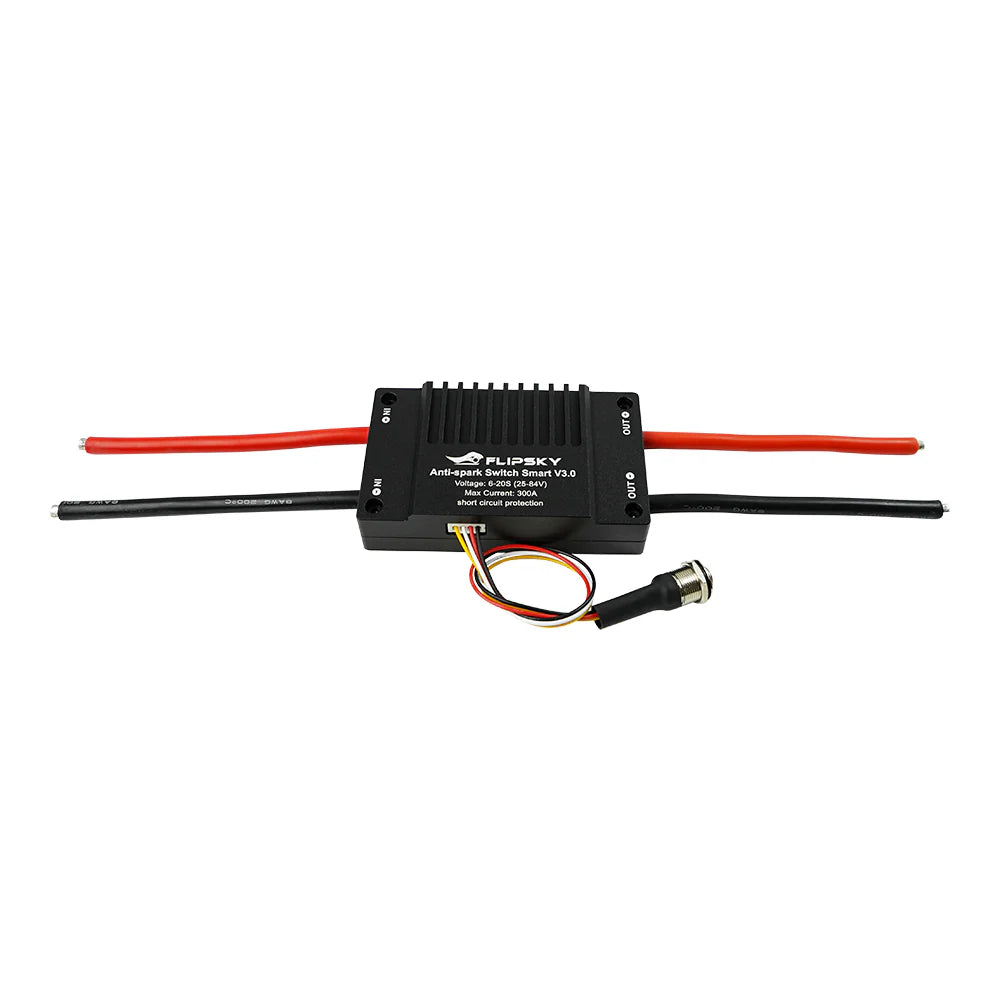

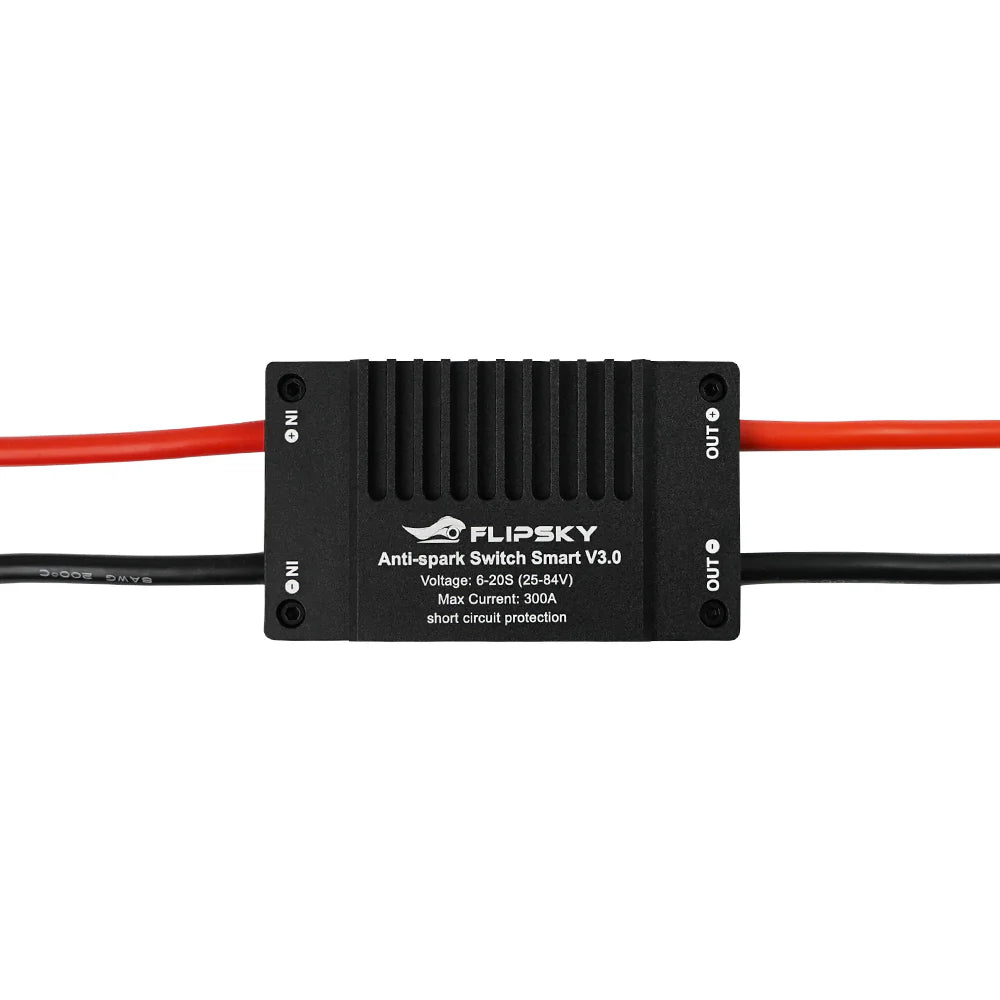

Flipsky Anti-spark Switch Smart 300A V3.0 For Electric Skateboard / Electric Surfboards / RC Cars / Electric Go-karts / Robots

Beschreibung

Spec:

  • Working Voltage: 6-20S Li-Po
  • Output Current: Continuous max 300A (duration time depends on external heat dissipation conditions)
  • Diameter of Switch Button: 12mm (Self-lock switch)
  • Size: 97*57*24mm
  • Weight: 311g

Features:

  • Metal shielding cover for good heat dissipation and reducing electromagnetic interference.
  • Equipped with LED indicator light, users can check the status of the light to determine whether it works normally.
  • If the light is always on, indicating the switch works normally. If the light flashes indicates that the short-circuit
    protection function has been triggered.
  • Soft start-up: Increasing the current / voltage in the circuit slowly to achieve smooth load start-up. It can reduce the impact of start-up, protecting the load, switch and the entire circuit system and improve safety.
  • Support start-up short circuit protection, working short circuit protection, preventing the controller and power supply system damage effectively, which improves the liability and safety of equipment.

Wiring diagram:

Flipsky Anti-spark Switch Smart 300A V3.0 For Electric Skateboard / Electric Surfboards / RC Cars / Electric Go-karts / Robots

Produkt Form

Spec: Working Voltage: 6-20S Li-Po Output Current: Continuous max 300A (duration time depends on external heat dissipation conditions) Diameter of... Lesen Sie mehr

$57.00 Exkl. MwSt

          • Heute verschickt? Bestellung innerhalb: Jun 04, 2026 17:00:00 +0800

          Beschreibung

          Spec:

          • Working Voltage: 6-20S Li-Po
          • Output Current: Continuous max 300A (duration time depends on external heat dissipation conditions)
          • Diameter of Switch Button: 12mm (Self-lock switch)
          • Size: 97*57*24mm
          • Weight: 311g

          Features:

          • Metal shielding cover for good heat dissipation and reducing electromagnetic interference.
          • Equipped with LED indicator light, users can check the status of the light to determine whether it works normally.
          • If the light is always on, indicating the switch works normally. If the light flashes indicates that the short-circuit
            protection function has been triggered.
          • Soft start-up: Increasing the current / voltage in the circuit slowly to achieve smooth load start-up. It can reduce the impact of start-up, protecting the load, switch and the entire circuit system and improve safety.
          • Support start-up short circuit protection, working short circuit protection, preventing the controller and power supply system damage effectively, which improves the liability and safety of equipment.

          Wiring diagram:
