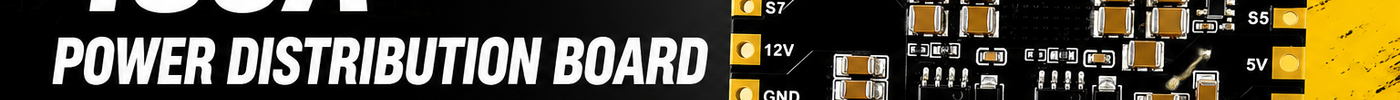

What Is a Drone Power Distribution Board (PDB)? A Complete Guide for UAV Builders

Published on: June 2026

Category: Drone Technology & Electronics

Introduction

When building a drone, most pilots focus on motors, flight controllers, ESCs, and batteries. However, one component that often receives less attention is the Power Distribution Board (PDB).

Although relatively simple in appearance, a PDB plays a critical role in ensuring stable power delivery throughout the aircraft. Whether you are building an FPV racer, a heavy-lift UAV, or an agricultural drone, understanding the function of a power distribution board can help improve reliability and simplify your wiring.

In this guide, we'll explain what a drone PDB is, how it works, and how to choose the right one for your application.

---

What Is a Drone Power Distribution Board?

A Power Distribution Board (PDB) is an electronic board that distributes power from the main battery to multiple onboard components.

Typically, a PDB supplies power to:

• Electronic Speed Controllers (ESCs)

• Flight Controllers

• GPS Modules

• Video Transmitters (VTX)

• Cameras

• LEDs and Accessories

Think of the PDB as the central power hub of the drone.

Without a properly designed distribution system, wiring becomes complicated and voltage losses may increase.

---

How Does a PDB Work?

The battery connects directly to the power distribution board.

The board then distributes electrical current to each ESC and other electronic components through dedicated copper traces or terminals.

Basic power flow:

Battery → PDB → ESCs → Motors

Battery → PDB → Flight Controller / VTX / GPS

This arrangement creates cleaner wiring and reduces the number of solder joints required.

---

Why Is a PDB Important?

1. Simplifies Wiring

Instead of connecting every component directly to the battery, the PDB acts as a centralized power management platform.

Benefits include:

• Cleaner layout

• Easier maintenance

• Faster assembly

• Reduced wiring errors

---

2. Improves Reliability

High-current drones often draw hundreds of amps during aggressive flight.

A quality PDB ensures:

• Stable current flow

• Lower resistance

• Better heat dissipation

• Improved electrical reliability

---

3. Supports Additional Electronics

Many modern PDBs include integrated voltage regulators.

Common outputs include:

• 5V

• 9V

• 12V

These regulated outputs power:

• Flight Controllers

• FPV Cameras

• Video Transmitters

• Telemetry Modules

without requiring separate power converters.

---

Types of Drone Power Distribution Boards

Standard PDB

Traditional boards used in custom drone builds.

Advantages:

• Simple

• Lightweight

• Affordable

Best for:

• FPV drones

• DIY UAV projects

---

PDB with Integrated BEC

BEC stands for Battery Elimination Circuit.

These boards provide regulated voltage outputs.

Advantages:

• Fewer components

• Simplified wiring

• Better space utilization

Best for:

• FPV drones

• Fixed-wing aircraft

---

How to Choose the Right PDB

Check Current Rating

Always choose a PDB capable of handling the total current of your system.

For example:

4 Motors × 50A ESC = 200A System Current

The PDB should comfortably exceed this requirement.

---

Check Battery Voltage

Verify compatibility with:

• 4S LiPo

• 6S LiPo

• 12S LiPo

• Higher voltage systems

Industrial UAVs often require higher voltage support.

---

Consider PCB Thickness

Thicker copper layers provide:

• Better conductivity

• Lower heat generation

• Higher current handling

This becomes critical for large UAVs.

---

Look for Protection Features

Some advanced PDBs include:

• Voltage monitoring

• Current sensing

• Surge suppression

• Reverse polarity protection

These features improve overall system safety.

---

Common PDB Problems

Burned Copper Traces

Usually caused by:

• Excessive current

• Poor soldering

• Undersized PCB design

---

Loose Solder Joints

Can lead to:

• Voltage drops

• Intermittent power loss

• Flight instability

---

Overheating

Often caused by:

• High current demand

• Insufficient copper thickness

• Poor airflow

Regular inspection is recommended for high-power drones.

---

PDB vs Direct Battery Wiring

For drones using individual ESCs, a Power Distribution Board (PDB) provides a cleaner and more reliable power management solution.

A PDB distributes power from the main battery to multiple individual ESCs, helping simplify wiring, improve system organization, and provide a more stable power connection for high-performance builds.

Advantages of using a quality PDB:

Cleaner and more organized power wiring
Easier installation and maintenance
Supports high-current power distribution
Reduces wiring complexity in large drone builds
Provides a more reliable power connection for multiple ESCs

Some builders choose to connect individual ESCs directly to the battery to save a small amount of weight and reduce components.

Direct Battery Wiring Advantages:

Slightly lighter setup
Fewer additional components

However, this approach usually requires more complicated wiring and makes maintenance more difficult, especially for high-power drones with multiple ESCs.

For larger drones, long-range platforms, and high-current applications, a well-designed PDB remains the preferred solution due to its better power management, cleaner installation, and improved reliability.

---

Future Trends

As drones become more powerful, power distribution systems are evolving toward:

• Higher voltage support

• Smart power monitoring

• Integrated telemetry

• Current sensing

• Compact modular designs

Modern UAV platforms increasingly require intelligent power management rather than simple power distribution.

---

Conclusion

The Power Distribution Board may not be the most exciting component in a drone, but it is one of the most important.

A properly selected PDB improves wiring organization, power stability, and overall system reliability.

Whether you're building an FPV racer, industrial UAV, agricultural drone, or long-range platform, investing in a quality power distribution system will help ensure safer and more efficient flights.

MAXKGO 5-16S 480A High Current Power Distribution Board (PDB)：https://maxkgo.com/products/maxkgo-5-16s-480a-high-current-power-distribution-board-pdb-for-fpv-drone-dual-bec-5v-12v-output
