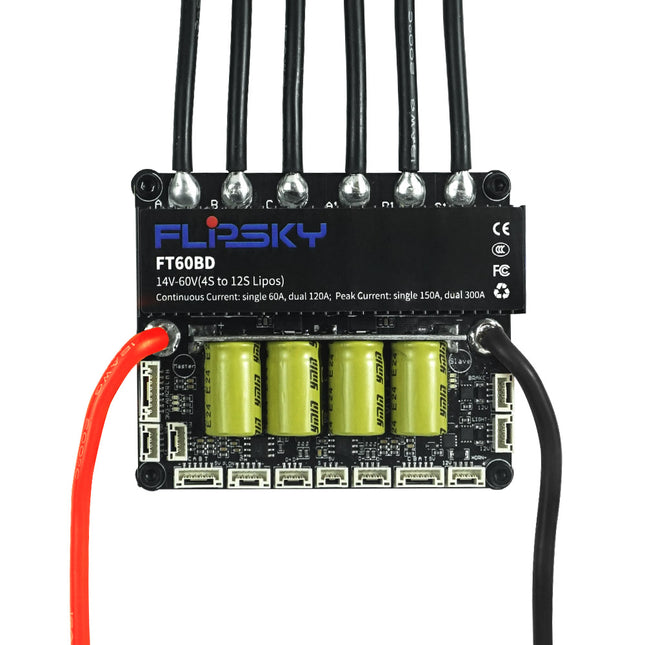

Specifications: Firmware: V1.4 or above (firmware update via Flipsky ESC Tool supported) Voltage: 14V-60V (safe for 4S-12S) Continuous Current: 60A / Single; 120A / Dual (Values depend on the mounting and ambient temperature around the device) Peak Current: 150A / Single; 300A / Dual Communication Ports: USB, CAN, UART, PPM, ADC Input Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present), PAS Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), Encoder (ABI, AS5047 encoder SPI interface) BEC: 5V@1A Multiple Speed Gear Levels: Low, Medium, High, Reverse Front Lights, Rear Brake Lights & Horn: Support Programmable: Yes Regenerative Capacity: Yes Slide Poweron & Auto shutdown: Yes. Auto poweroff time can be customized. Self-resetting switch with green LED button Diameter: 16mm Power Wire Size: 12AWG; Motor Wire Size: 12 AWG Size: L85*W70*H25mm (including heatsink) Features: 1.Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed. 2.240MHz and the max PWM switching frequency 25KHz improves the motor RPM. Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways. 3.Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.4.0 or above). 4.Supporting motor FOC with low working noise and smooth starting. 5.Supporting Real-time data and fault alerts. 6.Supporting adaptive variable PWM frequency control. 7.Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI). 8.Supporting control types: Current, Duty Cycle, Speed control, Position Control. 9.Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection. 10.Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via Flipsky ESC Tool. 11.Supporting extra interface like front lights, brake lights and horn fixtures (12V 4A). 12.Supporting multiple typed of motor t emperature sensors such as NTC-10K-25℃, NTC-10K-100℃, PT1000, PTC-1K-100℃, KTY and so on. ​Wire Connection:

Read more less

Spec:Firmware supporting update via Flipsky ESC ToolVoltage: 14-84V(safe for 4-20S)Continuous current: 50V/60A; 75V/50A; 84V/40A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Peak Current: 250ACommunication Ports: USB, CAN, UARTInput Signal Support: PPM, UART(compatible with FLIPSKY remote VX4 only), ADCBEC: 5V@1AMultiple Speed Gear levels: Low, Medium, High, ReverseMotor/power wire size: 12 AWGProgrammable: YesRegenerative Capacity: YesSize: L110.5*W55*H30mm(Including Alu. Case)Power Switch Button: Red Features:1.Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed2.240MHz and the max PWM switching frequency 45KHz, which improves the motor RPM.3.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different batteryvoltages and many control ways.4.Programmable via Flipsky VX4 remote(Firmware Version:VX4_V1.2)5.Supporting FOC with low working noise and smooth starting.6.Supporting Real-time data and fault alerts.7.Supporting adaptive variable PWM frequency control.8.Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).9.Supporting control types: Current, Duty Cycle10.Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection. Application Fields:Electric skateboard / Ebike / E-Scooter / Electric Motorc ycle / Robotics / FPV / RC Toys /Boat / Kayak etc Note: USB cable will be shipped randomly in black or white color.

Read more less
