Expertly designed, the MAXKGO smart BMS 12S 60V 70A protection board is compatible with both VESC and FSESC® systems. This smart BMS provides superior protection and efficiency for Ebikes, Esk8s, Escooters, and more. With advanced features including VESC compatibility, this BMS ensures maximum performance for all your electric transportation needs. Firmware & software repositories are available click here： MAXKGO Tutorial on MAXKGO BMS settings with VESC Spec: Cell voltage operating range:2V-5V Recommended series cell:6S-12S Charge / discharge voltage:24V-52V Charge Current：≤20A Abs. Max battery voltage: 60V Minimum operating voltage: 14V Continuous charging current: 20A Over charge detect and release voltage: 2V-5V Over charge protection delay: ≥4ms Discharge current: ≤70A Max. Continuous discharge / regen current: 70A  Over discharge detect / release voltage: 0-5V Over current detect delay:≥4ms Discharge over current protection release condition: off load Short Circuit detect voltage:short circuit of external load Short Circuit detect delay: 320us Short Circuit protection release: off load Battery pack capacity and internal resistance detection: Yes Balance current: 86mA @4.2V Temp Protect: -20℃—+120℃ Working Temp Range:-20℃—+80℃ Storage Temp Range: -20℃—+100℃ Working current: ≤40mA Sleeping current: ≤100uA Size: 89 x 40 x 20.8mm Net weight: 106.5g Packing size: 140 x110 x 50 mm Package weight: 303.5g Including outer carton size: 170*120*100mm Weight with outer carton: 380g Feature: Compact layout and mini Using aluminum alloy material shell, better heat dissipation. Automotive grade design, automotive grade locking connector. Configuring and firmware upgrades over USB through the MAXKGO-BMS-TOOL and ENNOID-BMS-TOOL. Automotive grade monitoring & balancing IC with separate power supply for increased reliability Voltages measurements for load, charger & battery pack Bi-directional current monitoring SOC based on coulomb counting Humidity sensor & board temperature monitoring Charger detection circuit Integrated precharge circuit Power button, USB-C, UART, I2C & isolated CAN bus interface On board High-Efficiency 3.3V regulator powered from the main battery pack High current capacity automotive grade screw connectors for main power connections Buzzer & status LED Support:  overcharge/discharge/over current /temperature protection,and have thermal management/balance function(active balance and passive balance). Support:  almost all lithium batteries such as lithium ion battery, lithium polymer battery, lithium phosphate battery, etc. Packing list: 1* PCBA 1* HY2.0 single head 10P line 1* HY2.0 single head 13P line 2* GH1.25 single head 5P cable 1* GH1.25-5P to Dupont line 1* USB cable type-C data cable 1* 2.0MM jumper cap 1* 1.3 inch OLED display LCD screen module 1* 12MM 3-6V key switch 4* M5*8 stainless steel round head screws 4* M5 copper gasket 4* 90 degree angle terminal block T90-6/5  1* XT30 (female) Video: If you need more diagrams for different series, please contact us!

Read more less

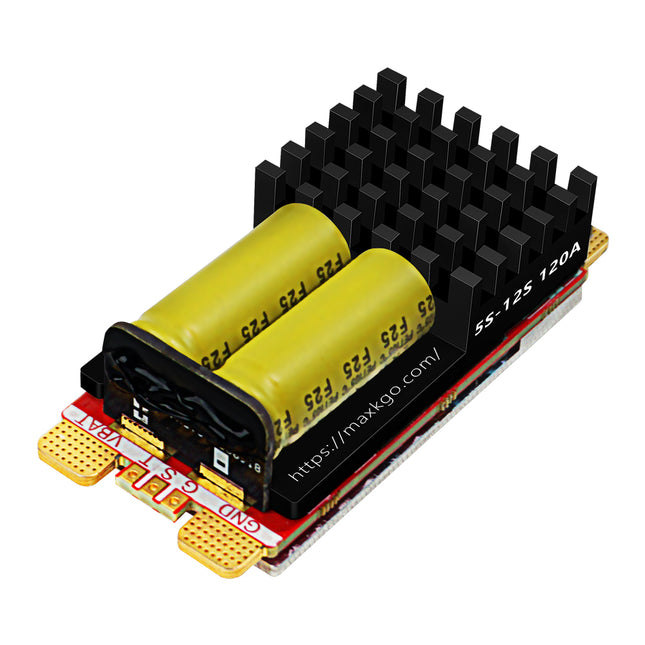

Description： (1) Adopt 32-bit high-performance processor AT32F421, with working frequency 120MHz and maximum motor PWM frequency 128KHz . (2) Adopt high-power MOSFETs and heatsink with good heat dissipation performance in high current. (3) Support multiple motion modes such as uni-direction, bi-direction with braking etc. (4) Support low voltage protection, temperature protection, locked rotor protection, current protection etc. (5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot. (6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings. (7) Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars.  5-12S120A_ESC Parameter： Model MAXKGO 5-12S 120A_ESC Processor AT32F421 Input voltage DC 18V-50.4V（5-12S Lipo） Continuous current (good heat dissipation) 120A Maximum current  (good heat dissipation) 150A Support firmware AM32 Signal protocol Dshot (All),PWM,Oneshot,Multishot,etc. Programming parameter adjustment Support Throttle calibration Support Timing angle setting Support Current detection Support Telemetry signal Support Motor steering settings Support Application scenarios Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, and rock crawlers. 5-12S120A_ESC Features： MINI SizeSupports various protection functions: low-voltage protection, temperature protection, locked-rotor protection, and low-speed protection High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz 5-12S 120A ESC Application Fields： Multi Axis UAV (Unmanned Aerial Vehicle) Fixed-wing model aircraft Multi-rotor model aircraft RC model car Model boat Packing List：5-12S120A_ESC Main Unit * 1Heat Shrink Tubing * 5PH2.0 Communication Cable * 1
