Specifications： Display color :  white Working temperature : -40℃～80℃ Communication method :  IIC serial port Power supply mode :  DC 3.3V Resolution : 192*64 Display size : 29.42*14.7 MM Dimensions : 36*33.5 MM Net weight: 7.3 g    Description: The circuit board uses a red PCB board, and the circuit layout is more reasonable, and the appearance is more beautiful. At the same time, the double-sided copper immersion gold process is adopted, the copper thickness is 1oZ, and the FR-4 material is selected to make the product more stable and more beautiful.   Advantages of 1.3-inch OLED display: 1.     Ultra wide viewing angle 2.     Strong anti-interference 3.     High contrast 4.     Golden ratio 5.     White light vision is clear and natural   Package List: 1.3 inch display module      ×1 Double-head 5P line     ×1

Read more less

Video: Only Charge Board does not support discharge protection, please do not discharge through this protection board. Specs: Type: Charge only Cell Chemistry: Li-ion (3.7V nominal) Balance method: Passive balance Series Count: 4S-24S Charge Current: 20A Overcharge Voltage: 4.25V Overcharge Reset: 4.19V Balance: 30-50mA@4.2V Overtemperature: 60°C Overtemperature Reset: 40°C Size: 110*30*11mm Net weight: 30g Package Included: 1* MKBMS 4S-24S 20A Only Charge Board 1* GH2.0 single head 12P line 1* GH2.0 single head 13P line 1* HY2.0 single head 2P cable with thermal protection switch 1* Charging cable with XT60 or XT30 connectors

Read more less

MKBMS 4S-30S 20A Only Charge Battery Protect Board device is designed to reduce the risk of charging. Designed to be ultra-compact and simple to use without any configuration required. Features high charging current, balancing activity LED lights, overcharge, and over temperature protection .Extensive Used in electric bicycles, electric scooters, Onewheels and other fields. MKBMS 4S-30S 20A Only Charge Board does not support discharge protection, please do not discharge through this protection board. adapter board: https://shorturl.at/bhjTY Specs: Type: Charge only Cell Chemistry: Li-ion (3.7V nominal) Balance method: Passive balance Series Count: 4S-30S Charge Current: 20A Overcharge Voltage: 4.25V Overcharge Reset: 4.19V Balance:20-30mA@4.2V（Please balance the battery first before charging） Overtemperature: 60°C Overtemperature Reset: 40°C Size: 130*30*11mm Net weight: 30g Features: Compact charge only design Cell balance indicator LED Compatible with 4s-30s battery Designed to be ultra-compact and simple to use without any configuration required Anodized aluminum heatsink case, stable performance Functions: Balance function Overcharge protection Overtemperature protection Cell balance indicator LED Common Uses: ▪ One-wheeled electric skateboards ▪ Electric Skateboards ▪ Electric Scooters ▪ Electric Bikes ▪ EUCs Package Included: 1* MKBMS 4S-30S 20A Only Charge Board 1* GH2.0 single head 15P line 1* GH2.0 single head 16P line 1* HY2.0 single head 2P cable with thermal protection switch 1* Charging cable with XT30 or XT60 connectors Operation Notes: Please ensure the correctness of the wiring sequence, from B0-B15, B16-B30, the voltage increases from low to high in sequence. This BMS is compatible with battery packs up to 30s, which is over 5V DC when fully charged. Electric shocks from high voltage may cause serious injury. Please pay attention to safety when using. This device is designed to reduce the risk of charging and will not protect against overcurrent discharge, undervoltage, internal pack shorts, pack overtemperature. Video:

Read more less

Expertly designed, the MAXKGO smart BMS 12S 60V 70A protection board is compatible with both VESC and FSESC® systems. This smart BMS provides superior protection and efficiency for Ebikes, Esk8s, Escooters, and more. With advanced features including VESC compatibility, this BMS ensures maximum performance for all your electric transportation needs. Firmware & software repositories are available click here： MAXKGO Tutorial on MAXKGO BMS settings with VESC Spec: Cell voltage operating range:2V-5V Recommended series cell:6S-12S Charge / discharge voltage:24V-52V Charge Current：≤20A Abs. Max battery voltage: 60V Minimum operating voltage: 14V Continuous charging current: 20A Over charge detect and release voltage: 2V-5V Over charge protection delay: ≥4ms Discharge current: ≤70A Max. Continuous discharge / regen current: 70A  Over discharge detect / release voltage: 0-5V Over current detect delay:≥4ms Discharge over current protection release condition: off load Short Circuit detect voltage:short circuit of external load Short Circuit detect delay: 320us Short Circuit protection release: off load Battery pack capacity and internal resistance detection: Yes Balance current: 86mA @4.2V Temp Protect: -20℃—+120℃ Working Temp Range:-20℃—+80℃ Storage Temp Range: -20℃—+100℃ Working current: ≤40mA Sleeping current: ≤100uA Size: 89 x 40 x 20.8mm Net weight: 106.5g Packing size: 140 x110 x 50 mm Package weight: 303.5g Including outer carton size: 170*120*100mm Weight with outer carton: 380g Feature: Compact layout and mini Using aluminum alloy material shell, better heat dissipation. Automotive grade design, automotive grade locking connector. Configuring and firmware upgrades over USB through the MAXKGO-BMS-TOOL and ENNOID-BMS-TOOL. Automotive grade monitoring & balancing IC with separate power supply for increased reliability Voltages measurements for load, charger & battery pack Bi-directional current monitoring SOC based on coulomb counting Humidity sensor & board temperature monitoring Charger detection circuit Integrated precharge circuit Power button, USB-C, UART, I2C & isolated CAN bus interface On board High-Efficiency 3.3V regulator powered from the main battery pack High current capacity automotive grade screw connectors for main power connections Buzzer & status LED Support:  overcharge/discharge/over current /temperature protection,and have thermal management/balance function(active balance and passive balance). Support:  almost all lithium batteries such as lithium ion battery, lithium polymer battery, lithium phosphate battery, etc. Packing list: 1* PCBA 1* HY2.0 single head 10P line 1* HY2.0 single head 13P line 2* GH1.25 single head 5P cable 1* GH1.25-5P to Dupont line 1* USB cable type-C data cable 1* 2.0MM jumper cap 1* 1.3 inch OLED display LCD screen module 1* 12MM 3-6V key switch 4* M5*8 stainless steel round head screws 4* M5 copper gasket 4* 90 degree angle terminal block T90-6/5  1* XT30 (female) Video: If you need more diagrams for different series, please contact us!

Read more less

MAXKGO-SS BMS is a full-featured battery protection board for electric vehicles, light electric vehicles, and electric skateboards. It is an intelligent mini BMS that integrates charging protection, discharge protection, overcurrent protection, temperature protection, and balance protection.（The factory default setting is 12S. If you need to change it, please modify it yourself.） Firmware & software repositories are available click here： MAXKGO Tutorial on MAXKGO BMS settings with VESC Applicable battery voltage Recommended Battery: 6S-12S Operating Voltage Range per Cell: 2V-5V Charging Charging Voltage: 24V-52V Charging Current: ≤50A Maximum Supported Charging Voltage: 60V Minimum Supported Charging Voltage: 14V Overcharge Protection Overcharge Detection Voltage: 2V-5V Overcharge Protection Delay: ≥4ms Overcharge Release Voltage: 2V-5V Discharging Discharge Current: ≤200A Overcurrent Protection for Discharge: ≤200A Discharge Voltage: 24V-52V Overdischarge Protection Overdischarge Detection Voltage: 0-5V Overdischarge Release Voltage: 0-5V Overcurrent Protection Overcurrent Protection Delay for Discharge: ≥4ms Overcurrent Protection Release Condition: Load Disconnect Short Circuit Protection Short Circuit Protection Condition: External Load Short Circuit Short Circuit Detection Delay: 320µs Short Circuit Protection Release Condition: Load Disconnect Balancing Current: 86mA @4.2V Temperature Protection Temperature Protection: -20℃ to +120℃ Operating Temperature Operating Temperature Range: -20℃ to +80℃ Storage Temperature Storage Temperature Range: -20℃ to +100℃ Self-Consumption Operating Current: ≤40mA Sleep Current: ≤100µA BMS  Details Includes: Overcharge Protection, Overdischarge Protection, Overcurrent Protection, Temperature Protection, Battery Capacity Detection, Battery Internal Resistance Detection, Thermal Management, Balancing Function Balancing Method: Active Balancing and Passive Balancing Short Circuit Protection: External Load Short Circuit Short Circuit Protection Recovery: Load Disconnect Battery Support: Supports nearly all lithium batteries including Li-ion, Li-polymer, LiFePO4, etc. BMS Edge Compact layout, ultra-mini size. Automotive-grade monitoring and balancing IC with independent power supply for enhanced reliability. Voltage detection of load, charger, and battery pack. Bidirectional current monitoring. SOC based on Coulomb counting. Humidity sensor and circuit board temperature monitoring. Charger circuit detection capability. Integrated pre-charge circuit. Features power button, USB-Type C, UART, I2C, and isolated CAN bus interfaces. Onboard efficient 3.3V regulator powered by the main battery pack. Uses high-current capacity automotive-grade screw connectors for main power connection. Includes buzzer and LED display. Aluminum alloy shell for improved heat dissipation. Automotive-grade locking mechanism with reverse interlock to ensure secure connections. Compatible with MAXKGO-BMS-TOOL and ENNOID-BMS-TOOL. BMS Safety Features Configurable under-temperature and over-temperature cutoff for charging and discharging. Configurable under/over battery voltage cutoff. Configurable overcurrent cutoff. Configurable minimum pre-charge value. High-side load and charger disconnect. Transient voltage suppression on all inputs. Secondary fuse on all balance channels, USB ports, and power supplies.   Package include： 1* PCB board 1* HY2.0 single-end 10-pin wire 1* HY2.0 single-end 13-pin wire 2* GH1.25 single-end 5-pin wire 1* GH1.25-5P to DuPont wire adapter 1* USB cable, Type-C data cable 1* 2.0MM jumper cap 1* 1.3-inch OLED display LCD module 1* 12MM 3-6V push-button switch 4* M5*8 stainless steel round head screws 2* M5*12 stainless steel round head screws 2* M5 copper nuts 6* M5 purple copper washers 6* 90-degree angled wire terminals T90-6/5 (purple copper) 2* fuses Video:

Read more less

Firmware & software repositories are available click here： MAXKGO MAXKGO BMS User Manual:MAXKGO Remark: Only Support 6S-28S 12A Smart Only Charge BMS and 6S-24S 150A Smart BMS Maxkgo-BMS Privacy Policy (1)Maxkgo-BMS User Protocol (1) Package Included:  1* MKBMS 6S-24S Smart Bluetooch VESC BMS Board(With aluminum shell) 1* Bluetooth module 1* UART module 1* 1.3 inch OLED display LCD screen module 1* 12MM 3-6V key switch 1* GH1.5 single head 5P line 1* GH1.25-5P to Dupont line 1* PH2.0 single head 13P line 1* PH2.0 single head 12P line 1* PH2.0 single head 8P line Operation Notes: Please ensure the correctness of the wiring sequence, from B0-B12, B13-B24, the voltage increases from low to high in sequence. 1. This BMS is compatible with battery packs up to 24s, which is over 102V when fully charged. Electric shocks from high voltage may cause serious injury.Please pay attention to safety when using.

Read more less

Product Description-- Charging current: <60A Discharge current: < 150A Internal resistance: ≤15mΩ   Charging voltage: The number of Li-ion battery in series connection X 4.2VWiring : same port or different ports（When using the charging and discharging same port, disconnect the p-）   Overcharge protection—— Detection voltage: 4.25±0.025V Detection delay: 1000±500MS Release voltage: 4.15±0.05V   Over-discharge voltage protection—— Detection voltage: 2.75±0.1V Detection delay: 1000±500MS Release voltage: 3.0±0.1V   Balanced voltage—— Detection voltage: 4.15±0.025V Detection delay: 100±50MS Balance current: 42±5MA   Over discharge current protection—— Detection voltage: 50±15MV Detection delay: 1000±500MS Current protection: 300±50A 450±50A 600±60A   Short circuit protection-- Trigger condition: external short circuit Detection delay: 300us Release condition: disconnect the load   Temperature control protection—— Charge and discharge over-temperature protection: 55℃ Charge and discharge high temperature release temperature: 75℃ Release condition:During normal working temperature          Self-consumption—— Working power consumption: <35UA Over-discharge power consumption(Sleeping State): <10UA Operating temperature range: -30°~+80°C   Product Features-- Overcharge protection Over discharge protection Over current protection Balanced protection Temperature control protection Applicable for 8-14S battery   Size:121*50*12.8mm Net weight:244g Weight: 331.5g   Package: 1* PCBA board 1*HY2.0 single head 15P line   Wiring diagram

Read more less

Click it MINI V6.8 Specifications :  Firmware:  vesc_tool_3.00 5.2 (supporting firmware upgrade) Continuous current: 100A; instantaneous current: 150A (values depend on the mounting and ambient temperature around the device!) Voltage: 14V-60V(Cells: 4-13S; safe for 4S-12S, voltage spikes may not exceed 60V! )  BEC: 5V@1.5A; ERPM: 150000 Support Hall Sensor: No, Sensorless Supported Modes: BLDC, FOC (sinusoidal) Control Interface Ports: USB, CAN, UART, IIC Input Set Support: PPM, ADC, NRF, UART Regenerative capacity: Yes Programmable: Yes Motor wire: 10AWG; Power cable: 8AWG Size: 64x43.5x34.7mm(Including heatsink) Features: Based on vesc6, programmable via VESC_TOOL and support real-time data read. Adopting CPU STM32F405 with the structure of ARM Cortex-M4 allows CPU clock speed.  Support three control modes: Current / Dutycycle / Speed. Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160 Wiring diagram: MINI V6.8 Plus Specifications :  Firmware: 5.2 (supporting firmware upgrade) Continuous current: 150A; instantaneous current: 200A (values depend on the mounting and ambient temperature around the device!) Voltage: 14V-60V ( Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! ) BEC: 5V@1.5A; ERPM: 150000 Supported sensors: ABI, HALL,AS5047,AS5048A Supported Modes: BLDC, FOC (sinusoidal) Control Interface Ports: USB, CAN, UART, IIC Input Set Support: PPM, ADC, NRF, UART Regenerative capacity: Yes Programmable: Yes Power Wire: 8.0mm bullets female X 2pcs Motor Wire: 8.0mm bullets female X 3pcs Size: 92.7x68x31.5mm(Including aluminum case) Features: 1) Based on vesc6, programmable via VESC_TOOL and support real-time data read. 2) Adopting CPU STM32F405 with the structure of ARM Cortex-M4 allows CPU clock speed. 3) Support four control modes: Current / Dutycycle / Speed 4) Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection. 5) Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160 Wiring diagram:

Read more less

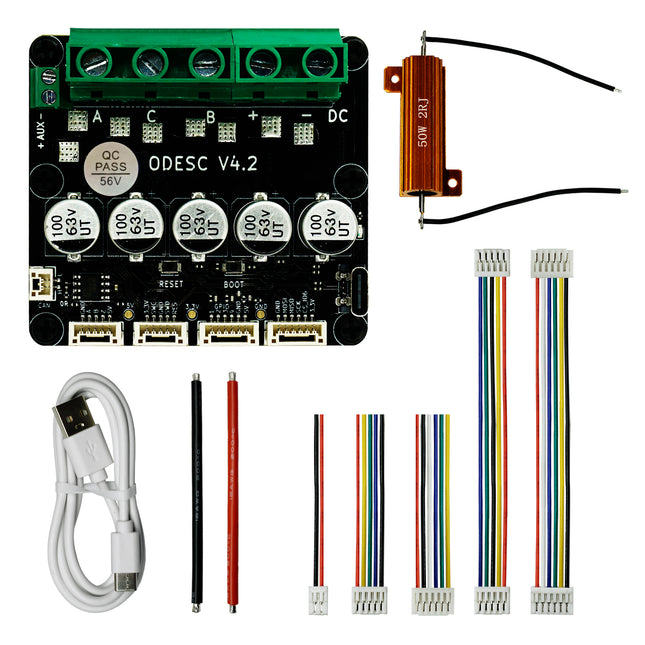

ODESC V4.2 Single-drive High-current High-precision Brushless Servo Motor Controller, Software Configuration Compatible with Odrivetool, FOC, BLDC ODESC V4.2(24V/56V) high-performance brushless drive is based on the open-source project ODrive for hardware optimization and enhancement, with stable performance and matching ODrive original firmware. The supporting USB connection to the PC terminal can realize motor debugging and complex multi-directional axis control and can realize FOC control for most brushless motors on the market. With the use of the encoder, it can also realize any torque, speed loop, position loop, current loop, and position control based on trajectory planning, etc. It can be widely used in flexible robot joints, robotic arms, 3D printing, camera universal joints, pan rail, CNC milling machine, ship models, car models, and other DIY, industrial and automation fields. Product Parameters: Hardware version: ODESC V4.2 Drive motor: brushless DC motor (BLDC) Braking method: Power resistors, battery recycling Microprocessor: STM32F405RGT6 Working voltage: 8-24V, 8-56V Maximum current: 120A Continuous current: 70A Motion mode: speed, position, current, torque, trajectory and other control modes. Encoder type: incremental encoder (AB, ABI), absolute value encoder (SPI), Hall sensor (HALL), AMT102, AMT103, TLB5012, AS5047P, etc. Communication interface: USB, PWM, UART, CAN, Analog Input, Step & Direction, GPIO, ASCII, etc. Over-current heat dissipation: PCB integrated high-current open skylight design, adopts thick copper layer and special process of immersion gold, and CN custom-made aluminum metal heat sink, which greatly enhances continuous over-current capability and improves operation stability. Apply to: robot joint control, robotic arm, food delivery robot, inspection robot, AGV car, 3D printing, pan-tilt slide rail, CNC milling machine, force feedback simulator, industrial and automation BLDC control field, etc. Product Size: 63*58*30mm Net Weight Of Product: 70g Package Included: ODESC V4.2*1 Type-C Data Cable*1 50W 2Ω Power Resistor*1 12AWG Silicone Wire*2 SH1.0mm 2P Single Head*1 SH1.0mm 5P Single Head*1 SH1.0mm 6P Single Head*1 SH1.0mm 5P Same Direction Double Head*1 Overall Dimension: Product Size: 63*58*30mm Net Weight Of Product: 70g Package Size:190*100*35mm Packing Weight: 143g Package Size (Including Outer Carton)：200*110*45mm Packing Weight (Including Outer Carton)：180g

Read more less
