Charging voltage:The number of Li-ion batteryin series connection X 4.2V Wiring : Same Port
Overcharge protection——
Detection voltage: 4.25±0.025V
Detection delay: 1000±500MS
Release voltage: 4.15±0.05V
Over-discharge voltage protection——
Detection voltage: 2.75±0.1V
Detection delay: 1000±500MS
Release voltage: 3.0±0.1V
Balanced voltage——
Detection voltage: 4.15±0.025V
Detection delay: 100±50MS
Balance current: 42±5MA
Over discharge current protection——
Detection voltage: 50±15MV
Detection delay: 1000±500MS
Current protection: 600±60A
Short circuit protection--
Trigger condition: external short circuit
Detection delay: 300us
Release condition: disconnect the load
Temperature control protection——
Charge and discharge over-temperature protection: 55℃
Charge and discharge high temperature release temperature: 75℃
Release condition:During normal working temperature
Self-consumption——
Working power consumption: <35UA
Over-discharge power consumption(Sleeping State): <10UA
Operating temperature range: -30°~+80°C
Product Features--
Overcharge protection
Over discharge protection
Overcurrent protection
Balanced protection
Temperature control protection

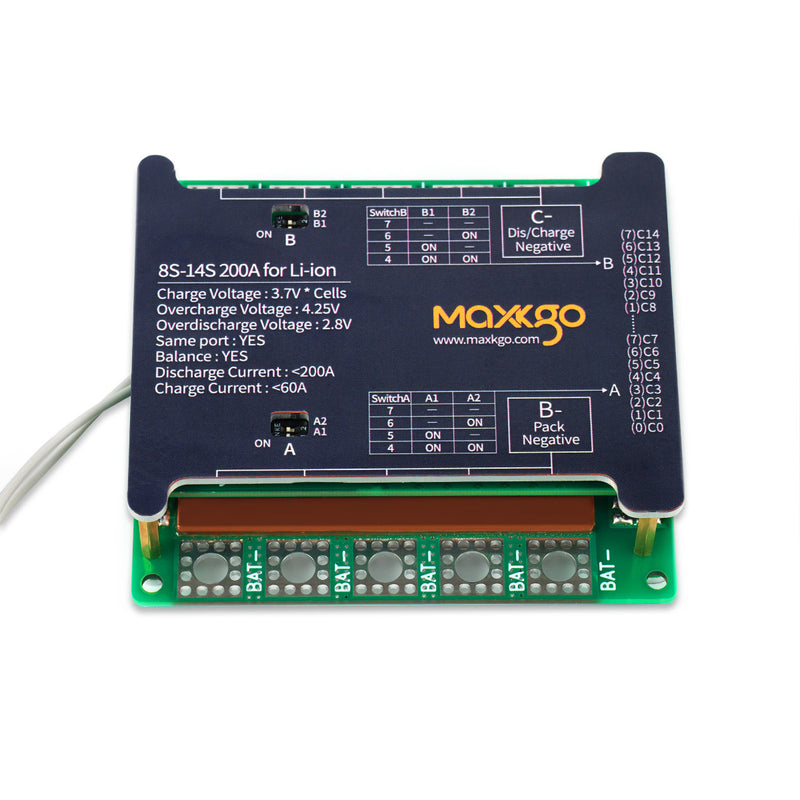

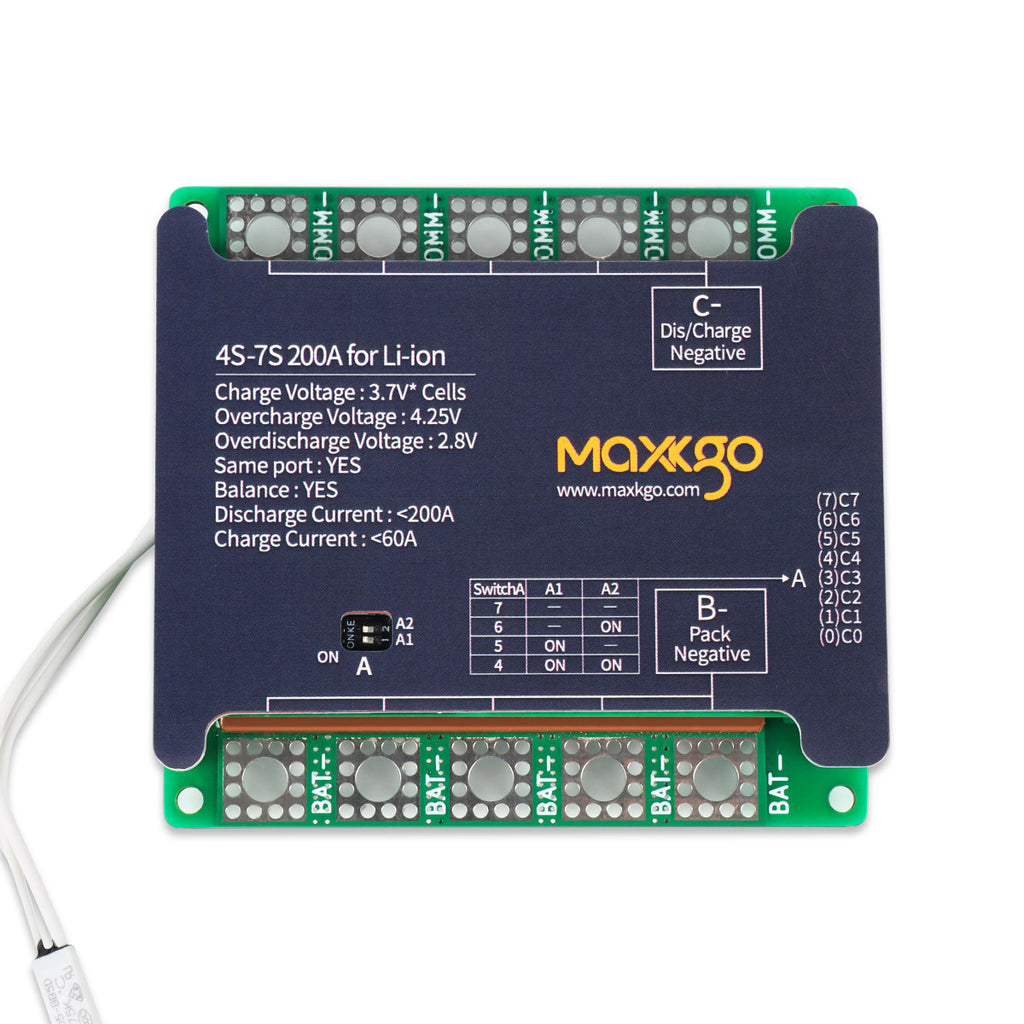

Applicablefor 4S-7S / 8S-14S Li-ion battery
Package——
4S-7S:
1* 4-7S BMS PCBA board
1*HY2.0 single head 8P line
8S-14S:
1* 8-14S BMS PCBA board
1*HY2.0 single head 7P line
1*HY2.0 single head 8P line
Net weight:261.1g
Weight:263.2g
Size:85.4*79.5*28.8 mm
ATTENTION——
1. It is strictly forbidden to insert balance wires into BMS before connecting batteries.Must make sure that the cable is soldered correctly first , and then connect the BMS board.
2. The sequence of connecting wires for BMS:
a.From thin black balance wire to stare, the 2ndwire(thin red wire)connect with the 1stbattery’s positive pole.Then connect each cell’s positive pole in order until the last one B+.
b.Please do not insert the plug directly after the cable is connected.Measure the voltage between each two adjacent metal terminals on the back of the plug. If it is a ternary polymer battery, the voltage should be between 3.0 ~4.2V, and the voltage of the iron-lithium battery should be between 2.0 ~3.6V. The voltage should be between 1.5~2.75V.
c.After confirming that the wiring sequence and voltage of the cables are correct, insert them into the socket of the protection board.
Attentionplease: The cables of different manufacturers are not universal, please make sure to use the matching cables.
3. After the wiring is completed, measure whether the voltage of battery B+and B- ,andthe voltage of B-and C- are equal. If they are equal, the protection board is working normally and can be used normally. If it is not equal, please check the wiring again.
